CANEO series10

A milestone in HMI. The new CANEO series10 sets a new benchmark.

Discover the new CANEO series10. The switches offer a highly convincing Sensor Fusion Technology as well as an advanced capacitive measuring principle. The series10 are freely programmable via IO-Link and unique due to their design and functional concept.

CAPTRON-thumb1-caneo-series10-video
overlayplay

CANEO series10

Watch now

Features of CANEO series10

IO-Link capable

Configuration of all function parameters via IO-Link

Freely programmable functions

Scanning sensivity, type and duration of actuation and various output signals

Innovative Design

Unique design, softgrip ring, minimal installation depth,
4 lateral spotlights

16 Million Colors

16 Million fluorescent colors available to choose from

360° Visibility

Perfect visibility of the switch status thanks to 4 lateral spotlights

WATER-RESISTANT

In case of contact with splash or cleaning water the switch will not activate (only CANEO series10 Stainless Steel)

ADAPTIVE BRIGHTNESS

The switch brightness adjusts automatically or manually to the ambient light

Hygienic design

Use of plastic materials and articles intended to come into contact with food, Commission Regulation (EU) No. 10/2011, compliance with DIN EN 1672-2, FDA approval, EHEDG (certification in progress)

Free choice of symbols

Individual design of symbols and pictograms possible

Capacitive sensor technology

High ease of use, no mechanical pressure required

Impact-resistant - vandal-proof

The sensor cannot be destroyed by lighter flames or severe blows

Durable service life

More than a 100 million operation cycles

Benefits of CANEO series10

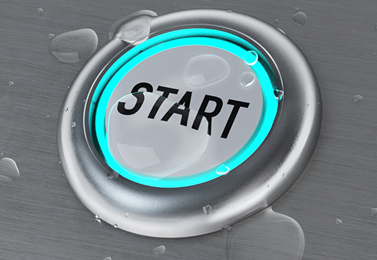

Water-Resistant

The new Sensor Fusion Technology allows friction-free operation, even in wet or moist environments. The CANEO series10 Stainless Steel won‘t be activated by splash or cleaning water, but only through intentional contact.

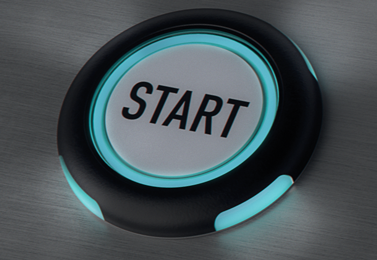

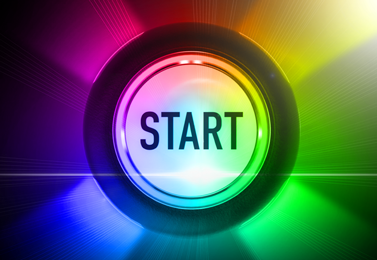

16 Million colors

An innovative lighting concept with four lateral spotlights allows the SENSORswitch not only to appear larger, but also provides 360° visibility.

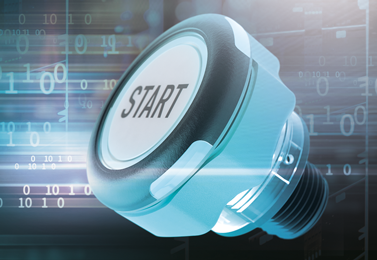

Freely progrogrammable

Via IO-Link, practically all electrical parameters for operating the CANEO series10 can be freely configured. This includes, amongst other things, the scanning sensitivity, the type of actuation, fluorescent color on activation, as well as static or flashing illumination.

Illuminated symbols

When selecting display symbols, CAPTRON customers also have the choice of countless predefined pictograms, which can also be illuminated. Customized symbol design is also possible.

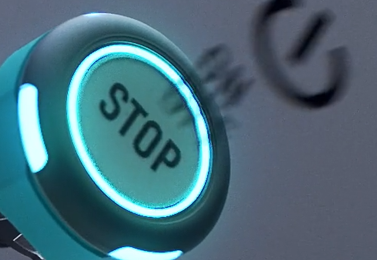

Adaptive brightness

The CANEO series10 switches automatically adjust their illumination to the ambient light via an integrated light sensor. An ideal function to ensure intense, readily discernible illumination in sunlight and to prevent a glare effect at night.

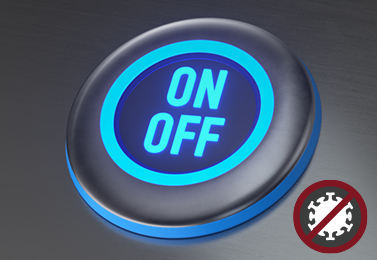

Hygienic design

At CAPTRON, compliance with food safety has top priority. The special care taken in this area is reflected in the product-specific declarations of conformity for the most important regulations regarding materials and articles intended to come into contact with food: FDA approval for raw materials, Regulation (EU) No. 10/2011, design according to DIN EN 1672-2 and cleanability of materials, surfaces and structural elements according to EHEDG (certification in progress).

Areas of application

AUTOMATION INDUSTRY

Thanks to its individual adaptability and IO-Link support, the CANEO series10 integrates easily into networking environments. Ideal for applications in the field of mechanical engineering and robotics. The touch sensitivity can be adjusted as required, and even work gloves do not interfere with the functionality.

Food & Beverages

The top priority in the production of food and beverages is the safety and protection of the consumer. The hygienic design of series10 Touch Hygienic guarantees protection against contamination - conforming to EU regulation 10/2011, DIN ISO 1672-2, FDA approval of materials, design according to EHEDG Hygienic Design Principles (certification pending), the switch can be reliably cleaned of viruses and impurities and sterilized.

Building Technology

The CANEO series10 combines highest quality with innovative design. The four lateral spotlights make the switches appear larger and provide 360° visibility.

Technical data

TECHNICAL SPECIFICATIONS AT 24 V AND 20 °C

Operating voltage DC 24 V (8,4...32 V)
Load current Max. 200 mA
Output PNP-NO, PNP-NC, NPN-NO, NPN-NC
Communications interface IO-Link
Output pulse duration Adjustable
Reverse polarity protection Protection of all cables/lines
Short circuit protection Protected against short circuit and overload
Voltage drop Max. 5 V at 200 mA
Power consumption at 24 V Max. 40 mA
Operating temperature -30 °C (-22 °F)...+65 °C (149 °F)
Degree of protection IP Front IP69K
Degree of protection IK IK08
Type of actuation Capacitive
Actuation force No actuation force required
Standards DIN EN 61010 / DIN EN 60947-5-1
Sealing material TPE Basalt gray
Housing material PC transparent / TPU black / Stainless steel 1.4404
