The new generation of capacitive Two-Hand Control

News 07/18/2025: CAPTRON proudly presents powerful additions to the Two-Hand Control product family: the certified SC31 and the versatile SL3x. Whether you're upgrading existing systems or designing new machinery, these sensor-based controls deliver next-level safety and performance.

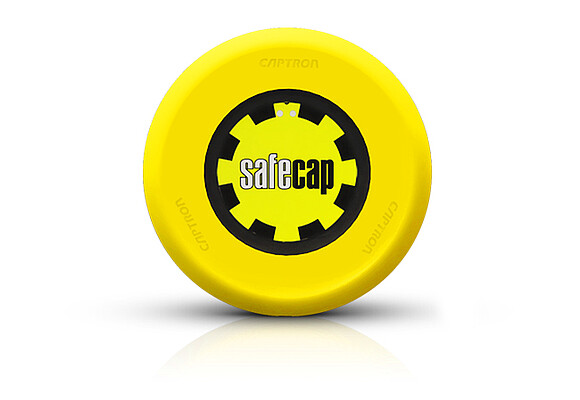

SC31 – Certified Safety in a Slim, Smart Form

The SC31 is the direct successor to the trusted SC4 and sets a new benchmark for certified two-hand safety controls. Designed for critical applications such as presses and stamping machines, the SC31 combines high safety standards with an ergonomic and low-profile design.

Key Features:

• Certified to EN ISO 13849-1 (Category 4, PLe) and EN ISO 13851
• TÜV SÜD tested, compatible with MCR-225 and PILZ PNOZ s6
• Slim 7 mm profile with a large 50 mm touch surface
• Optical feedback: green LED (ready), yellow LED (activated)
• Fully sealed and IP68-rated – water- and oil-proof
• Dual M12 connectors (5-pin and 8-pin, 6 poles used)
• Easy V-mount installation (Ø50–58 mm, 3 screws)

The SC31 is ideal for manufacturers and system integrators seeking a certified, intuitive, and maintenance-free two-hand control solution for safety-critical environments.

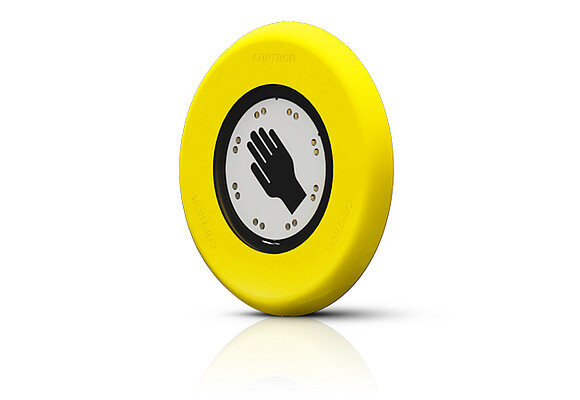

SL3x Series – Smart, Rugged, and Uncomplicated

For environments that require dual-channel input but not formal certification, the SL3x offers a compact, rugged, and cost-effective solution. It’s designed to handle demanding conditions while keeping operation simple and safe.

Highlights:

• Capacitive SENSOR button with antivalent, potential-free PhotoMOS relays (NO/NC)
• Ergonomic, force-free actuation – reliable even when wearing gloves
• No formal approval required under EN ISO 13849-1
• Optical feedback: green LEDs (ready), red LEDs (activated)
• Fully potted, IP69K certified – 100% waterproof and oil-resistant
• Impact resistant (IK08), maintenance-free – supports hundreds of millions of switching cycles
• Variants for different mounting requirements:

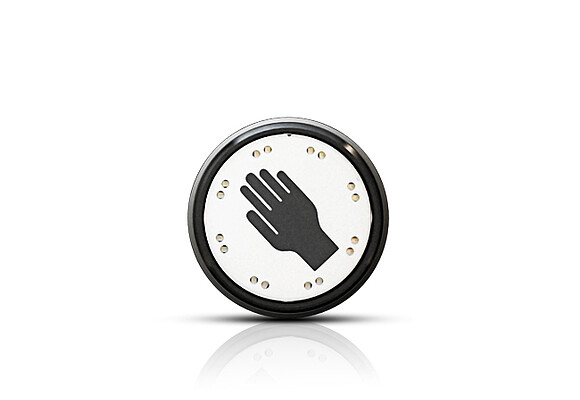

  • SL30: Ø 22.5 mm panel cut-out
  • SL31: Ø 50–58 mm with only 7 mm build-up height
• 5-pin M12 connector

The SL3x Series is an excellent choice for customized systems or retrofit solutions where in-house safety standards apply – without compromising on performance or quality.

Looking for an Upgrade SC31 and SL3x Series – Now Available

Whether you’re retrofitting an existing machine or building a new one, the SC31 and the SL3x are ready to perform. Explore it now in our CAPTRON Shop or contact our sales team for tailored solutions.

We’re here for your questions –

Your CAPTRON Team
