CHT7 Series

Description

The SENSORswitch CHT7 is designed for adhesive mounting on single glass and switch by touch. The SENSORswitch CHT7 can be switched inside and through glass. For installation / application it is not required to have a hole in the disk. By a full-area screening plate on the outside of the glass pane printing is not necessary. The field of application extends over traffic engineering and building technology. The SENSORswitch is equipped with an optical and a tactile feedback via optional with vibration. Several million cycles and  an extremely long life completes the SENSORswitch. For people with limited mobility, the SENSORswitch is available with Braille or raised symbols at the outer and the cover ring.

Downloads

Important properties

  • Adhesive mounting
    No screws required.
  • Touch Control
    High ease of use, no mechanical pressure required.
  • One-sided control
    Can be used on the inside only.
  • Feedback
    Visual and tactile signals through 16 LEDs and vibration (optional).
  • Shock-resistant
    The sensor cannot be destroyed by lighter flames or severe blows.
  • 100 % water & oil-proof - IP69K
    Sensor completely sealed in cast resin.
  • Durable service life
    More than 100 million operation cycles (transistor output).
  • Accessibility
    Braille and raised chevrons on coloured cover ring, 25 cm² operating surface.
  • TSI-PRM certified (depends on model)
    By directive 1300/2014.

Products

csm_CAPTRON-SENSORswitches-CHT7-2-Standard_b2664b7d3c

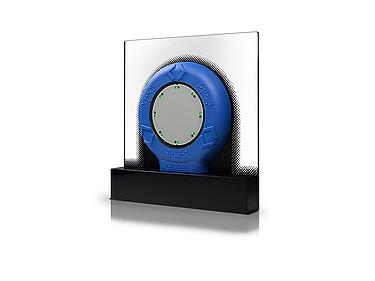

CHT7-2 (Standard)

Single-sided operation inside
Ideal for printed glass surfaces or wall mounting

  • Ø 63 mm switch surface
  • Adhesive mounting
  • 14 mm height inside
  • Profile angle 90°


APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

csm_CAPTRON-SENSORswitches-CHT7-2-Standard_b2664b7d3c

CHT7-2/#° (Profile angle)

Single-sided operation inside
Ideal for printed glass surfaces or wall mounting

  • Ø 63 mm switch surface
  • Adhesive mounting
  • 14 mm height inside
  • Profile angle 84°, 80°, 60°


APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

csm_CAPTRON-SENSORswitches-CHT74-2_e330bf29f3

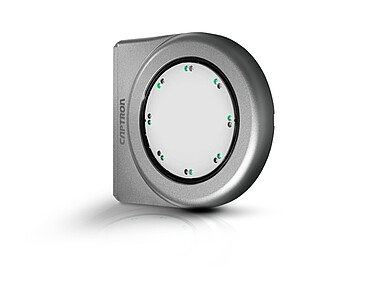

CHT74-2 (Metal version)

Single-sided operation inside
Ideal for printed glass surfaces or wall mounting

  • Ø 63 mm switch surface
  • Adhesive mounting
  • 12 mm height
  • Profile angle 90°


APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

csm_CAPTRON-SENSORswitches-CHT7-2-PL_263c1b34b6

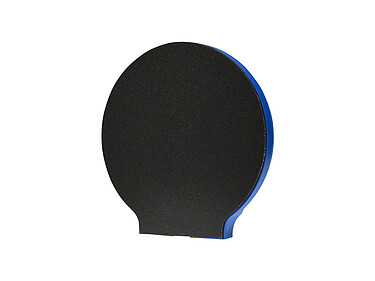

CHT7-2/PL (Sight cover with adhesive film covering the entire surface)

Single-sided operation inside
Ideal for transparent glass surfaces

  • Ø 63 mm switch surface
  • Adhesive mounting
  • 13 mm height inside
  • Profile angle 90°, 84°, 80°, 60°


APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
