Capacitive SENSORswitches CHT5

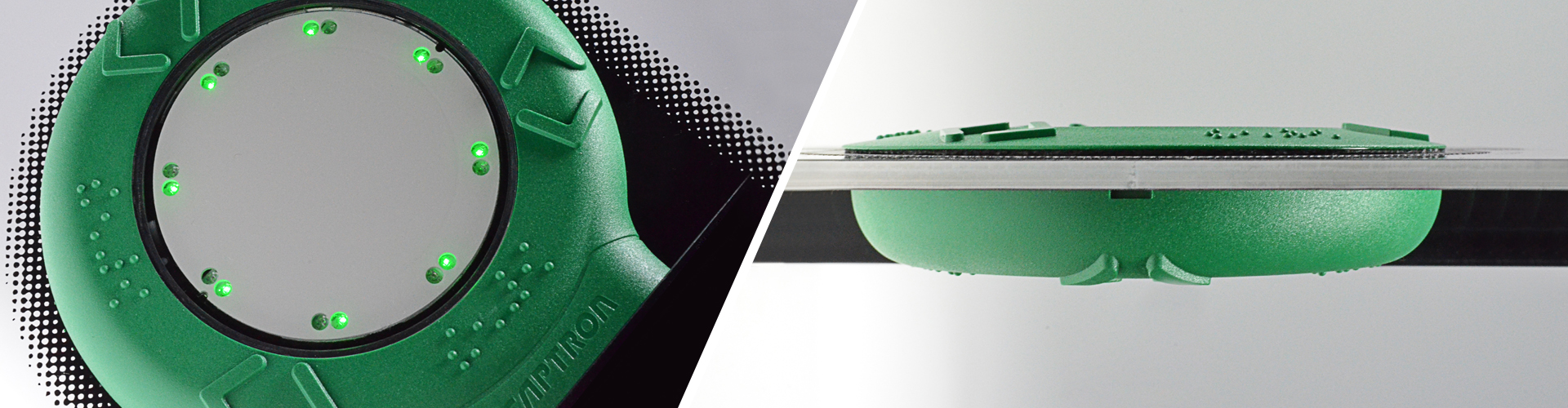

Description

Capacitive CHT5 SENSORswitches are designed to switch through glass and work in contrast to mechanical buttons wear-free. They are constructed for two-sided operation and therefore can be used from the inside and outside of a vehicle or building. No hole is required in the pane of glass for their installation. Industrial adhesive tape allows the uncomplicated gluing.

CHT5 SENSORswitches are suitable as door opening switches for the high frequency continuous service used in the passenger transport and building technology. The user receives optical feedback via 16 bright LEDs. According to the requirements of TSI-PRM for people with limited mobility, the outer ring can be equipped with Braille and raised pictograms.

CAPTRON can provide individual advice to enable you to choose the perfect product from the CHT5 series for the required specifications and applications. Contact us: CAPTRON service.

Downloads

csm_CAPTRON-Thumb-Redesign-CHT51-CHT51-Flyer_15acadb8b9
Redesign SENSORswitches CHT5-CHT51

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-SENSORswitches-Catalog_52e2e3f4fe
Catalog "Capacitive SENSORswitches"

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-SENSORswitch-CHT5-51-Betriebsanleitung_6d5588d863
Instruction Manual CHT5-51-2

+ Download DE
+ Download EN
csm_thumb_CAPTRON-whitepaper-rail-transit-technology_e7573451de
White paper "Rail Transit Technology"

SENSORtaster

+ Download EN
csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c
TSI-PRM Technical file "SENSORswitches"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Industrial-Automation-Brochure_96fdc46651
Brochure "Industrial Automation"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-ECE-R118_2441f57ac9
Certificate "ECE R 118 statement"

+ Download DE
+ Download EN
+ Download
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e
Certificate SENSORswitches "EN 50155"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Traffic-and-Transport-Brochure_702ea7dcea
Brochure "Traffic and Transport"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-SENSORswitches-Product-Key_9d25a01b01
Product type key "Capacitive SENSORswitches"

SENSORtaster

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d
Certificate SENSORswitches CHT5 "EN 45545"

+ Download DE
+ Download EN
+ Download

Important properties

  • Adhesive mounting
    No screws required.
  • Switching through single glass and direct touch
    No need to drill holes in the panes.
  • Two-sided control
    Can be used on the inside and outside.
  • Feedback
    Visual feedback through 16 LEDs.
  • Shock-resistant
    The sensor cannot be destroyed by lighter flames or severe blows.
  • 100 % water & oil-proof - IP69K
    Sensor completely sealed in cast resin.
  • Durable service life
    More than 100 million operation cycles (transistor output).
  • Accessibility
    Braille and raised chevrons on coloured cover ring, 25 cm² operating surface.
  • TSI-PRM certified (depends on model)
    By directive 1300/2014.

Products

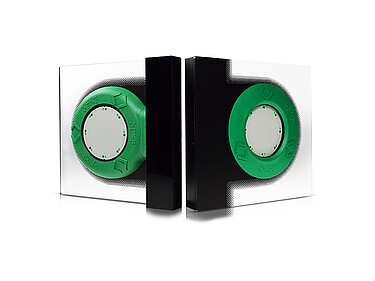

csm_CAPTRON-SENSORswitches-CHT5-2-Standard_531e91d263

CHT5-2

Two-sided operation through single glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 90°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

csm_CHT5-6_pic1_01_c0695d4dab

CHT5-6 (Corner mounting)

Two-sided operation through single glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Corner mounting

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

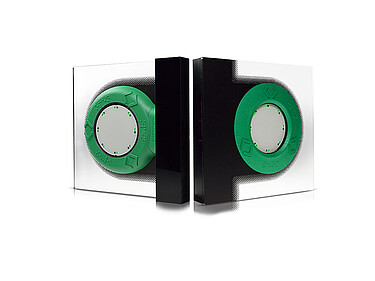

csm_CAPTRON-SENSORswitches-CHT5-2-Profileangle_3732382deb

CHT5-2/#° (Profile angle)

Two-sided operation through single glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 84°, 80°, 60°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
