CHT9 Series

Description

The SENSORswitch CHT9 is designed for adhesive mounting on single glass and other surfaces like metal. For installation on door leafs or windows,  it is required to have a hole in the the glass. The hygienic version CHT9-G is installed on mounting supports and can be sealed with e.g. silicon to achieve a high hygienic level. The field of application extends over traffic engineering, building technology and automation industries. The SENSORswitch is equipped with an optical, accoustical and / or tactile feedback via vibration. Several million cycles and  an extremely long life completes the SENSORswitch. For people with limited mobility, the SENSORswitch is available with Braille or raised symbols at the outer ring.

Downloads

Important properties

  • Adhesive mounting
    No screws required.
  • Touch Control
    High ease of use, no mechanical pressure required.
  • Feedback
    Visual, tactile and acoustic signals through 16 LEDs, vibration and beeper.
  • Shock-resistant
    The sensor cannot be destroyed by lighter flames or severe blows.
  • 100 % water & oil-proof - IP69K
    Sensor completely sealed in cast resin.
  • Durable service life
    More than 100 million operation cycles (transistor output).
  • Hygiene-conform design (depends on model)
    Based on DIN EN 1672-1/2.
  • TSI-PRM certified (depends on model)
    By directive 1300/2014.

Products

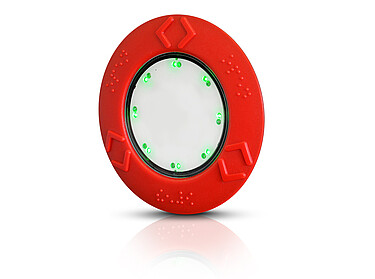

csm_CAPTRON-SENSORswitches-CHT9-1_3679b6d270

CHT9-1 (Wall mounting)

Ideal for mounting on sheet metal

  • Ø 100 mm total diameter
  • Adhesive mounting
  • 69-72 mm mounting hole
  • 3 mm hight

APPLICATION: BUILDING TECHNOLOGY | TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

csm_CAPTRON-SENSORswitches-CHT9-P_d463993192

CHT9-P (Glass mounting)

Ideal for dark tinted glass

  • Ø 100 mm total diameter
  • Adhesive mounting
  • 69-72 mm mounting hole
  • 3 mm height

APPLICATION: BUILDING TECHNOLOGY | TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

csm_CAPTRON-SENSORswitches-CHT9-G-Glastaster_c5c08c9263

CHT9-G (Hygienic)

Ideal for pharmaceutical and medical areas

  • Ø 100 mm total diameter
  • Adhesive mounting
  • 79-80 mm mounting hole
  • 5 mm height


APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION

csm_CAPTRON-SENSORswitches-CHT9-Y_15a7783345

CHT9-Y (Alu housing)

Ideal for plant automation

  • Ø 63 mm swich surface
  • Robust die-cast aluminium housing
  • For high design requirements
  • Optional with M12 connector available
  • 56,3 mm height

APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION

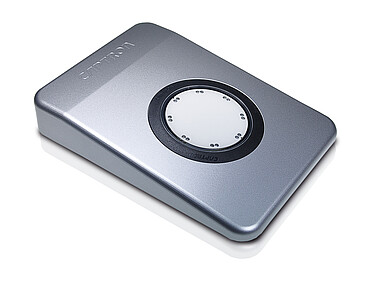

csm_CAPTRON-SENSORswitches-CHT9-Q-Footpaddel_2d0b9b6be2

CHT9-Q/CP148 (Foot switch)

Foot control witout operation force

  • Ø 63 mm switching surface
  • Robust aluminium-housing
  • For high design requirements
  • With M12 Connector

APPLICATION: INDUSTRIAL AUTOMATION
