Optical Sensors OGL

Description

CAPTRON fork light barriers with laser work based on the function principle of one-way light barriers. The transmitter and receiver are located in a robust metal housing with a fixed position and setting. This ensures simple, reproducible assembly.

A very high switching frequency of 10 kHz enables extremely precise and dependable detection of both metallic and non-metallic objects. Even the smallest of parts measuring only 0.05 mm moving at high speeds can be reliably detected thanks to the high resolution. The output contacts between the N/C and N/O contacts of the laser fork light barriers can be switched. The sensitivity can be adjusted using an adjustment screw.


LASER LIGHT BARRIERS WITH INTEGRATED AIR SYSTEM


CAPTRON laser light barriers with integrated air system are extremely resistant to dirt. Outflowing air prevents dust and dirt from collecting on the transmitter and receiver.

This makes the system ideal for industrial applications with high levels of contamination, such as the food industry, paper industry, mixing and metering systems, and many others.

Downloads

Important properties

  • One-way fork light barrier
    Laser
  • Reliable object detection
    Metallic and non-metallic objects
  • Fork widths
    20 to 220 mm
  • High switching frequency
    max. 10 kHz
  • High resolution
    of 0.05 mm
  • Settings
    Light/dark switching and sensitivity
  • Robust metal housing
    Degree of protection IP 65
  • High reproducibility
    of 0.01 mm
  • Optional equipment
    With integrated air system (fork widths from 50 to 120 mm)
  • Special designs
    Possible on customer request

Products

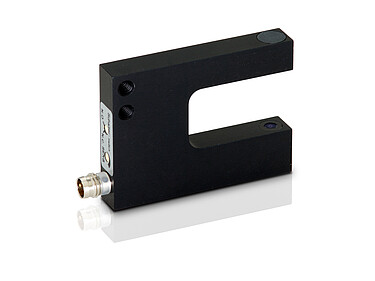

csm_CAPTRON-Optical-Sensors-OGL-20T-PU6_b90972041b

OGL-20T-PU6

Fork opening 20 mm

  • 35 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

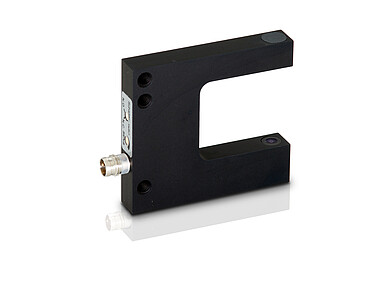

csm_CAPTRON-Optical-Sensors-OGL-30T-PU6_216373d109

OGL-30T-PU6

Fork opening 30 mm

  • 35 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

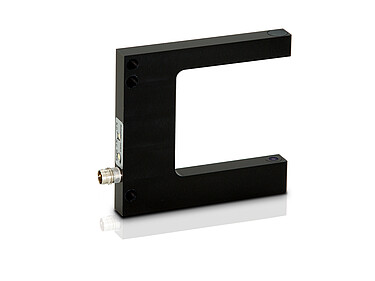

csm_CAPTRON-Optical-Sensors-OGL-50T-PU6_5857466bbb

OGL-50T-PU6

Fork opening 50 mm

  • 55 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

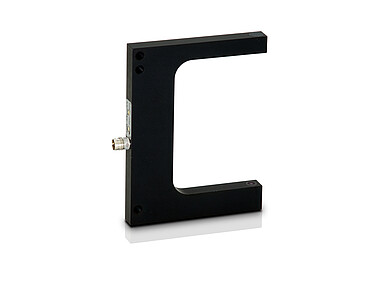

csm_CAPTRON-Optical-Sensors-OGL-80T-PU6_03d74d488a

OGL-80T-PU6

Fork opening 80 mm

  • 55 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

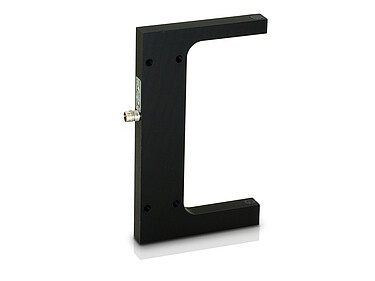

csm_CAPTRON-Optical-Sensors-OGL-120T-PU6_9ca1797e17

OGL-120T-PU6

Fork opening 120 mm

  • 55 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

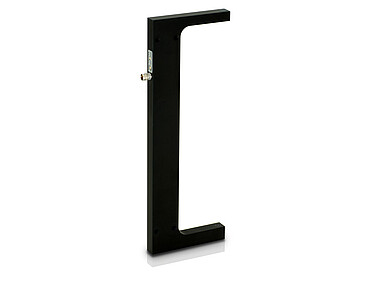

csm_CAPTRON-Optical-Sensors-OGL-220T-PU6_75cc92901d

OGL-220T-PU6

Fork opening 220 mm

  • 55 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

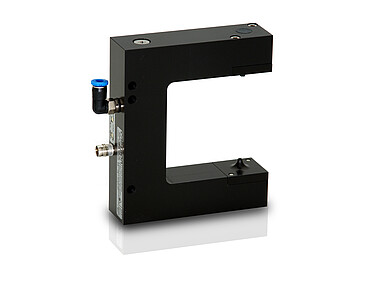

csm_CAPTRON-Optical-Sensors-OGL-50T-PU6-Air_76bac83cf8

OGL-50T-PU6/AIR (Compressed air connector)

Fork opening 50 mm

  • 62,5 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

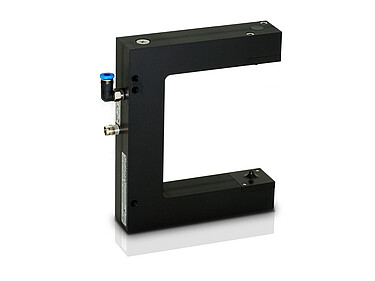

csm_CAPTRON-Optical-Sensors-OGL-80T-PU6-Air_c16d81265c

OGL-80T-PU6/AIR (Compressed air connector)

Fork opening 80 mm

  • 82,5 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

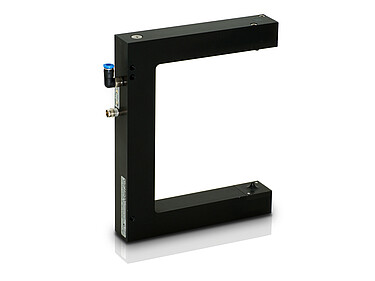

csm_CAPTRON-Optical-Sensors-OGL-120T-PU6-Air_e909ab9695

OGL-120T-PU6/AIR (Compressed air connector)

Fork opening 120 mm

  • 112,5 mm leg length
  • 0,05 mm resolution
  • NO/NC switchable
  • Sensitivity adjustable

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION
