series4x (with IO-Link)

Description

CAPTRON is expanding its successful IO-Link product line of the CANEO series with the innovative new switches of the series4x for flexible use in numerous industrial applications.

As an intelligent HMI device, the series4x combines all the properties and functions of a capacitive SENSORswitch with a signaling device.

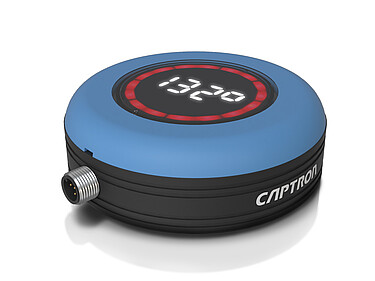

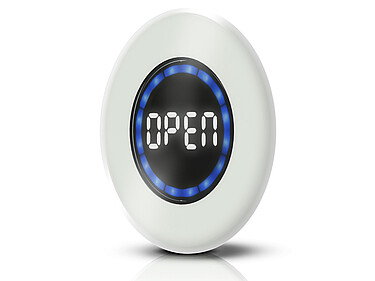

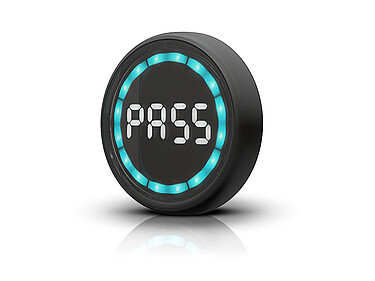

Equipped with a Ø 63 mm, 7-segment display, the series4x is the ideal choice for all HMI applications that require an intuitive and clearly visible status display. This saves space and additional costs for further command and signaling devices.

In particular, the innovative lighting concept of the configurable LED ring with around 16 million light colors makes the product line appear in a special light. Whether predefined LED patterns or free configuration: the series4x leaves nothing to be desired.

Preconfigured switches can be easily integrated into existing systems with little configuration effort.

The parameters that can be set via the IO-Link interface include the switch status (LED color, LED setting, number, text), the sensitivity, the minimum activation time, the sensor mode (dynamic, static, toggle) as well as static, flashing or pulsing light.

Downloads

Important properties

  • IO-Link-capable
    Configuration of all function parameters via IO-Link
  • Freely programmable functions
    Switch sensitivity, actuation type and time as well as various output signals
  • 7-segment display (depending on variant)
    Large status display (individually configurable)

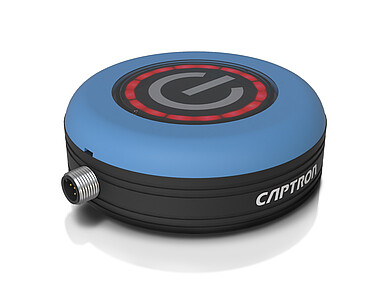

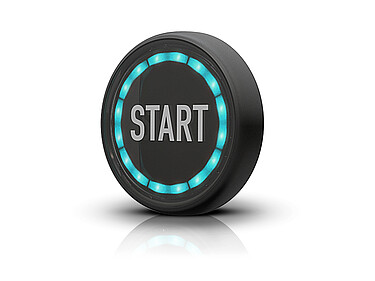

  • Configurable LED ring
    Feedback takes place via independently controllable LEDs (16 pieces)
  • 16 million colors
    16 Million fluorescent colors available to choose from
  • Adaptive brightness
    The switch brightness adjusts automatically or manually to the ambient light
  • 100% water-proof and oil-proof/vandal-proof
    Degree of protection IP69K, shock-resistant IK08
  • Free choice of symbols
    Individual design options or use of predefined symbols and pictograms
  • Capacitive sensor technology
    Switches when touched without pressure
  • Impact-resistant – vandal-proof (IK08)
    Cannot be destroyed by flames from lighters or blows to the touch surface
  • Extremely long service life
    Several 100 million switching cycles

Products

csm_CAPTRON-SENSORswitches-series41-Touch-Standard_000_f265e6333d

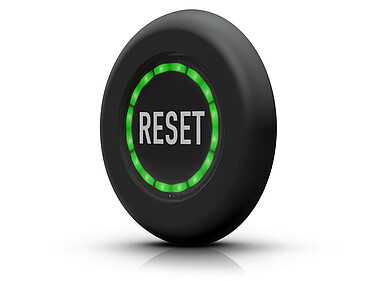

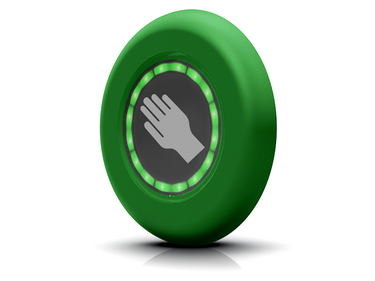

series41 Standard

  • Free choice of the symbol
  • Configurable LED ring
  • Various housing and mounting variants
  • IO-Link Interface with M12 Connector


APPLICATION: INDUSTRIAL AUTOMATION

csm_CAPTRON-SENSORswitches-series41-Touch-Standard-Display_000_9809a4a691

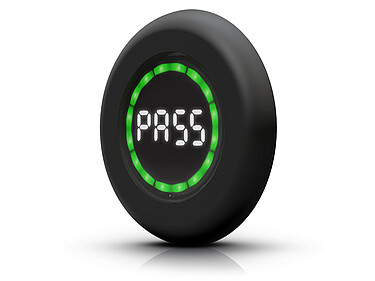

series41 Standard Display

  • 7-segment display
  • Configurable LED ring
  • Various housing and mounting variants
  • IO-Link Interface with M12 Connector


APPLICATION: INDUSTRIAL AUTOMATION
