Oil probes

Description

The probes in the CAA-60 series are made entirely from high-quality V4A stainless steel and are ideal for rough and hygienic applications in industry.

Its compact and robust design has been developed especially for hard-to-reach or smaller containers, storage tanks, separators and lubricant containers on filling systems and can withstand even the most adverse measuring conditions.

The probes can be synchronised with virtually all fluid, paste-like and poorly conducting media such as oil, delivering reliable and accurate measurements. Depending on the application, choose between analogue or switched outputs. CAPTRON produces your probes with millimetre accuracy to ensure full flexibility.

To choose the perfect measuring technology for your needs, speak to our CAPTRON experts: CAPTRON Service.

Downloads

csm_CAPTRON-Thumb-Level-Sensors-Catalogue_52cb7c2e5e
Catalog Level Measurement

Level Sensors

+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Certificate-Level-Sensors-DIN-EN-50155_ee884743e6
Zertifikat Füllstandsensoren "EN 50155"

+ Download DE
+ Download EN
+ Download PL

Important properties

  • Capacitive fill level measurement
    Proven measuring principle - reliable and accurate
  • Full flexibility
    Customised probe rod lengths - with millimetre accuracy
  • Stable housing
    Probe head and rod made from high-quality V4A stainless steel
  • Extremely long lifespan
    Wear-free electronics, high-quality materials
  • Simple and customised assembly
    Various process connections
  • Switching outputs
    Analogue and digital
  • Medium
    For fluids, poorly conductive materials such as oil

Products

csm_CAPTRON-Level-Sensors-CAA-60-KSP_cdef20f134

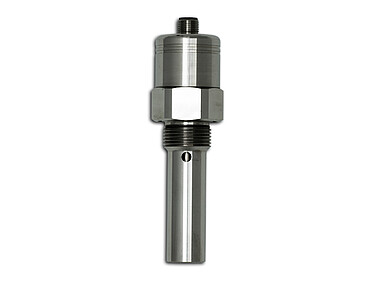

CAA-60 (Analog output)

Extremely robust analog oil probe made of stainless steel V4A

  • Capacitive level measurement of the medium
  • Especially for hardly accessible places
  • Robust design with high lifespan
  • Standard length 60 mm (up to 300 mm possible)

APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES

csm_CAPTRON-Level-Sensors-CAA-60-H18_f6ba01e733

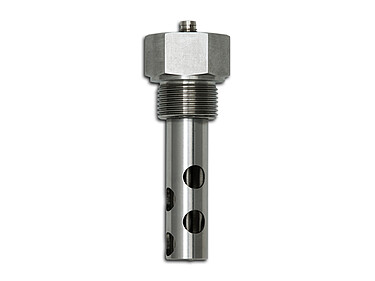

CAA-60-H18 (Switching output)

Compact probe with adjustable switching point

  • Capacitive detection of the medium
  • Standard length 60 mm (up to 600 mm possible)
  • Switching output available as NO / NC


APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
