CHT51 Series

Description

CHT51 SENSORswitches are designed for gluing to insulated glass (double-glazed glass). They are constructed for two-sided operation and switch by light touch on the pane of glass. On that score they are suitable for applications from the inside and outside of a vehicle or building with double-glazed glass. For their installation and application is no hole required in the pane.

As door opening buttons CHT51 switches are suitable for the high frequency continuous service used in the passenger transport and building technology. The switches provide optical feedback via 16 bright LEDs. According to the requirements of TSI-PRM for people with limited mobility, the outer ring can be equipped with Braille and raised pictograms.

CAPTRON can provide individual advice to enable you to choose the perfect product from the CHT51 series for the required specifications and applications. Contact us: CAPTRON service.

Downloads

csm_CAPTRON-thumb-set-konfigurationsanleitung_625adcb3fe
SENSORswitch Item Code Configurator

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-Redesign-CHT51-CHT51-Flyer_15acadb8b9
Redesign SENSORswitches CHT5-CHT51

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-Thumb-SENSORswitch-CHT5-51-Betriebsanleitung_6d5588d863
Instruction SENSORswitches CHT5-51-2

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db
Certificate "EG-Type Examination RST"

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d
Certificate SENSORswitches CHT5 "EN 45545"

+ Download DE
+ Download EN
+ Download PL

Important properties

  • Adhesive mounting
    No screws required.
  • Switching through double glass and direct touch
    No need to drill holes in the panes.
  • Two-sided control
    Can be used on the inside and outside.
  • Feedback
    Visual feedback through 16 LEDs.
  • Shock-resistant
    The sensor cannot be destroyed by lighter flames or severe blows.
  • 100 % water & oil-proof - IP69K
    Sensor completely sealed in cast resin.
  • Durable service life
    More than 100 million operation cycles (transistor output).
  • Accessibility
    Braille and raised chevrons on coloured cover ring, 25 cm² operating surface.
  • TSI-PRM certified (depends on model)
    By directive 1300/2014.

Products

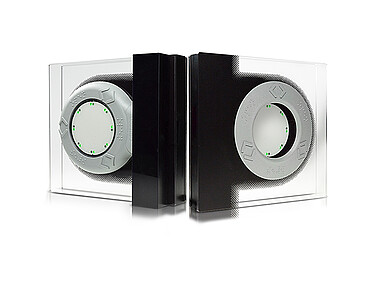

csm_CAPTRON-SENSORswitches-CHT51-2__843d4caf8a

CHT51-2

Two-sided operation through double glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 90°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

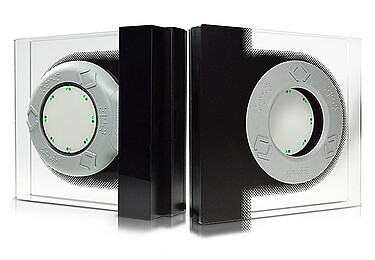

csm_CAPTRON-SENSORswitches-CHT51-2__843d4caf8a

CHT51-2/#° (Profile angle)

Two-sided operation through double glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 84°, 80°, 60°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
