LED signalling CSL6

Description

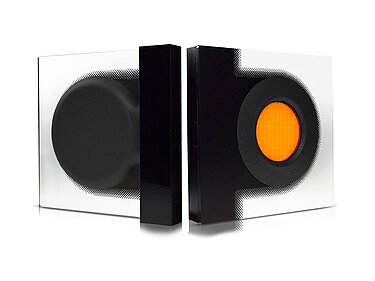

The full area LED signal lamp from CAPTRON is illuminated with 96 bright LEDs in red and yellow. The CSL6 is designed for gluing to single and double-glazed glass.

There is no need to make a hole in the glass for installation and the button can easily be clipped into the fastening flange. We can also provide corner and angle mountings for the flexible positioning of the CSL6 on the glass. We manufacture the housing in polycarbonate. The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK 08 and IP 68K).

They require no maintenance and suffer no wear, making them ideal for permanent everyday use and for withstanding even the most adverse environmental conditions such as heat and cold as well as industrial influences such as dirt, dust and chemicals.

LED technology means a service life of up to 100,000 hours can be achieved which corresponds to 11 years of continuous operation.

Downloads

csm_CAPTRON-Thumb-Industrial-Automation-Brochure_341a5a63b4
Brochure "Industrial Automation"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Traffic-and-Transport-Brochure_5d37d16f12
Brochure "Traffic and Transport"

+ Download DE
+ Download EN
+ Download CN
Any questions?

We will be pleased to help you.

Product Certificates

Certificates, flyers and data sheets

Important properties

  • Large illuminated area 55 mm in diameter
    The electronics and lamps are cast to make them watertight
  • Extremely long service life of up top 10,000 hours
    Energy-efficient, maintenance-free, wear-free
  • 100% waterproof and oil-resistant / vandalism-proof
    Degree of protection IP 69K, impact and scratch-resistant IK08
  • Lighting
    96 LEDs (red or yellow)
  • Installation
    Glued installation behind glass Pane or glass or acrylic glass panel

Products

csm_CAPTRON-LED-signalling-CSL6_9f12397461

CSL6-2 (Standard)

LED Signal lamp through glass

  • Ø 55 mm lampsize
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 90°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY



csm_CAPTRON-LED-Signal-Unit-CSL6-2_b24fbfd17b

CSL6-6 (Corner mounting)

LED Signal lamp through glass

  • Ø 55 mm lampsize
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Corner mounting

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

csm_CAPTRON-LED-signalling-CSL6_9f12397461

CSL6-2/#° (Profile Angle)

LED Signal lamp through glass

  • Ø 55 mm lampsize
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 84°, 80°, 60°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
