CHT6 Series

Description

The SENSORswitch CHT6 is designed for adhesive mounting on single glass and switch by touch. The SENSORswitch CHT6 can be switched one sided through single glass. For installation / application it is not required to have a hole in the glass. The field of application extends over traffic engineering and building technology up to information services. The SENSORswitch is equipped with an optical feedback. Several million cycles and an extremely long life completes the SENSORswitch. For people with limited mobility, the SENSORswitch is available with Braille or raised symbols at the outer ring.

Downloads

Important properties

  • Adhesive mounting
    No screws required.
  • Switching through single glass and direct touch
    No need to drill holes in the panes.
  • One-sided control
    Can be used on the outside only.
  • Feedback
    Visual feedback through 16 LEDs.
  • Shock-resistant
    The sensor cannot be destroyed by lighter flames or severe blows.
  • 100 % water & oil-proof - IP69K
    Sensor completely sealed in cast resin.
  • Durable service life
    More than 100 million operation cycles (transistor output).
  • Accessibility
    Braille and raised chevrons on coloured cover ring, 25 cm² operating surface.
  • TSI-PRM certified (depends on model)
    By directive 1300/2014.

Products

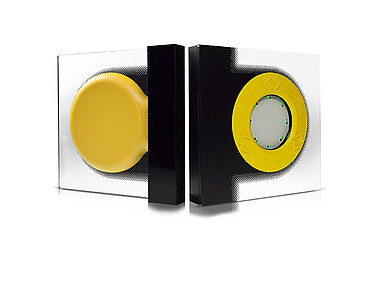

csm_CAPTRON-SENSORswitches-CHT6-2-Standard_75bacd4a97

CHT6-2

Single-sided operation through single glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 90°


APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

csm_CAPTRON-SENSORswitches-CHT6-2-Standard_75bacd4a97

CHT6-2/#° (Profile Angle)

Single-sided operation through single glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 84°, 80°, 60°


APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
