Description

With an extensive range of vandal resistant switches, CAPTRON switch range is designed with a high resistance to wear and tear, corrosion and harsh use in potentially hostile environments such as machine control and access control applications.

Manufactured in either stainless steel, CAPTRON switches of the CHT1 series are available in front panel mounted versions with different profile types: flush, low and raised.

According to the requirements according to DIN EN 1672-2, the hygienic designed switches made of stainless steel are suitable for applications in the health care sector and in food technology.

CAPTRON can provide individual advice to enable you to choose the perfect product from the CHT1 series for the required specifications and applications.
Contact us: CAPTRON Service.

Downloads

csm_CAPTRON-thumb-wp-ortner-reinraumtechnik_0553bad12a
Use Case "Ortner Reinraumtechnik"

+ Download DE
+ Download EN
csm_CAPTRON-thumb-set-configuration-manual_a84f8c207e
SENSORswitch Configuration CHT1 (Transistor output)

+ Download DE
+ Download EN
csm_CAPTRON-thumb-set-configuration-manual_a84f8c207e
SENSORswitch Configuration CHT1 (relay output)

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb
Catalog "Capacitive SENSORswitches"

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-SENSORswitch-CHT1-Instruction_2a4e8fd9eb
Instruction SENSORswitches "CHT1" with Relay B-BA

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_thumb_CAPTRON-whitepaper-rail-transit-technology_e7573451de
White paper "Rail Transit Technology"

SENSORtaster

+ Download EN
csm_CAPTRON-Thumb-Industrial-Automation-Brochure_96fdc46651
Brochure "Industrial Automation"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-ECE-R118_2441f57ac9
Certificate "ECE R 118 statement"

+ Download DE
+ Download EN
+ Download PL

Important properties

  • Touch Control
    High ease of use, no mechanical pressure required.
  • Feedback
    Optical signals through two LED rings.
  • Shock-resistant
    The sensor cannot be destroyed by lighter flames or severe blows.
  • 100 % water & oil-proof - IP69K
    Sensor completely sealed in cast resin.
  • Durable service life
    More than 100 million operation cycles (transistor output).
  • Hygiene-conform design (depends on model)
    Based on DIN EN 1672-1/2.
  • TSI-PRM certified (depends on model)
    By directive 2008/164/EG.

Products

csm_CAPTRON-SENSORswitches-CHT1-1_b0ddf6a10b

CHT1-1 (Standard)

Versatilaly usable

  • Ø 28.5 mm total diameter
  • Knurled nut mounting
  • Ø 22.5 mm mounting hole
  • 6.5 mm height

APPLICATION: INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

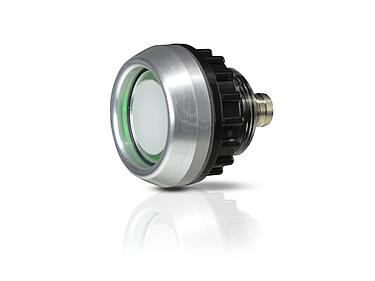

csm_CAPTRON-SENSORswitches-CHT1-5-_190796e064

CHT1-5 (Protector)

Raised housing ring against unintentional activation

  • Ø 28.5 mm total diameter
  • Knurled nut mounting
  • Ø 22.5 mm mounting hole
  • 8.5 mm height

APPLICATION: INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

csm_CAPTRON-SENSORswitches-CHT1-1_8-stainless-steel_14884056d4

CHT1-1#8 (Stainless steel)

Hygiene-conform housing according to DIN EN 1672-1/2

  • Ø 40 mm total diameter
  • Knurled nut mounting
  • Ø 22.5 mm mounting hole
  • 7 mm height

APPLICATION: FOOD & BEVERAGE | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

csm_CAPTRON-SENSORswitches-CHT1-T_8-Snap-In_aa9660501f

CHT1-T#8 (Snap-in)

Hygiene conform, snap-in mounting

  • Ø 40 mm total diameter
  • Snap-In mounting
  • Front plate thickness min. 1.5 mm
  • Ø 22.5 mm mounting hole
  • 10 mm height

APPLICATION: FOOD & BEVERAGE | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

csm_CAPTRON-SENSORswitches-CHT1-1_X_e2c2c29965

CHT1-1#X (Flush mounting)

Front panel mounting

  • Ø 26,5 mm total diameter
  • Adhesive mounting / screw mounting
  • Ideal front plate thickness 3 mm (optional)
  • Ø20 mm mounting hole (optional)

APPLICATION: FOOD & BEVERAGE | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

csm_CAPTRON-SENSORswitches-CHT1-U_c7888626d9

CHT1-U

Ideal for VDV drivers workplace

  • Ø 35 mm total diameter
  • Knurled nut mounting
  • 31 mm mounting hole
  • 3.8 mm height

APPLICATION: INDUSTRIAL AUTOMATION | TRAFFIC & TRANSPORT

csm_CAPTRON-SENSORswitches-CHT1-1_8CPM20_d5e877c3ee

CHT1-1#8/CPM20 (Stainless steel)

Robust housing ring

  • Ø 28.5 mm total diameter
  • Knurled nut mounting
  • Ø 22.5 mm mounting hole
  • 6.5 mm height

APPLICATION: FOOD & BEVERAGE | MEDICAL TECHNOLOGY | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

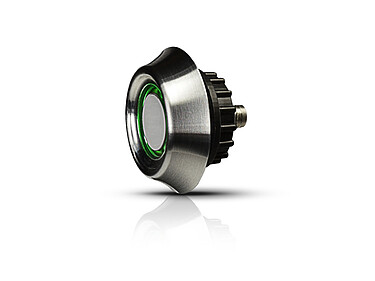

csm_CAPTRON-SENSORswitches-CHT1-6-hygienic_d25cc0fbfb

CHT1-6 (Stainless steel)

Raised design against unintentional activation

  • Ø 40.0 mm total diameter
  • Ø 22.5 mm mounting hole
  • 8.9 mm height
  • Hygienic-conform housing(DIN EN 1672-1/2)


APPLICATION: INDUSTRIAL AUTOMATION | FOOD & BEVERAGE | MEDICAL TECHNOLOGY | BUILDING TECHNOLOGY
