LED signalling CSA5

Description

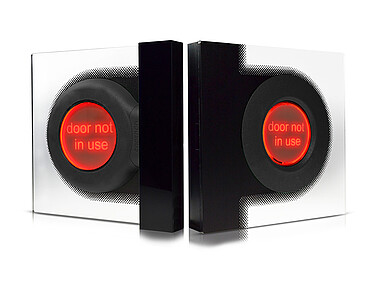

The LED signal display from CAPTRON can be backlit with various, bespoke texts or symbols in different LED colours. The CSA5 is designed for gluing to single and double-glazed glass.

There is no need to make a hole in the glass for installation and the button can easily be clipped into the fastening flange. We can also provide corner and angle mountings for the flexible positioning of the CSA5 on the glass. We manufacture the housing in glass fibre-reinforced polycarbonate.

The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK 08 and IP 68K). They require no maintenance and suffer no wear, making them ideal for permanent everyday use and for withstanding even the most adverse environmental conditions such as heat and cold as well as industrial influences such as dirt, dust and chemicals.

LED technology means a service life of up to 100,000 hours can be achieved which corresponds to 11 years of continuous operation.

Downloads

csm_CAPTRON-Thumb-Industrial-Automation-Brochure_341a5a63b4
Brochure "Industrial Automation"

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-Traffic-and-Transport-Brochure_5d37d16f12
Brochure "Traffic and Transport"

+ Download DE
+ Download EN
Any questions?

We will be pleased to help you.

Product Certificates

Certificates, flyers and data sheets

Important properties

  • Display bespoke texts
  • Extremely long service life 20' ... 100,000 hours
    Energy-efficient, maintenance-free, wear-free
  • 100% waterproof and oil-resistant / vandalism-proof
    Degree of protection IP 69K, impact and scratch-resistant IK08
  • Barrier-free
    With blind text and pictogram
  • Installation Glued installation behind glass
    Pane or glass or acrylic glass panel

Products

csm_CAPTRON-LED-signalling-CSA5_426848770d

CSA5-2 (Standard)

LED-Signal display through glass

  • Ø 55 mm displaysize
  • Illuminated text and pictograms can be displayed
  • Adhesive mounting
  • height inside 14 mm, outside 3.2 mm
  • Profile angle 90°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

csm_CAPTRON-LED-Signal-Unit-CSA5-2_cbadd65eae

CSA5-6 (Corner mounting)

LED-Signal display through glass

  • Ø 55 mm displaysize
  • Illuminated text and pictograms can be displayed
  • Adhesive mounting
  • height inside 14 mm, outside 3.2 mm
  • Corner mounting


APPLICATION:
TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

csm_CAPTRON-LED-signalling-CSA5_426848770d

CSA5-2/#° (Angle)

LED-Signal display through glass

  • Ø 55 mm displaysize
  • Illuminated text and pictograms can be displayed
  • Adhesive mounting
  • height inside 14 mm, outside 3.2 mm
  • Profile angle 84°, 80°, 60°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
