Capacitive SENSORswitches CHT4

Description

Capacitive CHT4 SENSORswitches have a large touch operating surface of 63 mm and are designed for screw mounting. Depending on the application, customers in the field of automation and building technology choose the CHT4 SENSORswitch for flush installation, optionally with a robust metal housing or with glass fiber-reinforced polycarbonate cover ring.

In the field of public and private passenger transport CHT4 SENSORswitches are used as door opening buttons. The user-friendly CHT4 switches according to TSI-PRM for people with limited mobility are designed with Braille, raised pictograms, 16 bright LEDs, acoustic beeper and vibration. Further areas of application are emergency and information columns at railway and bus stations as well as taxi ranks.

CAPTRON can provide individual advice to enable you to choose the perfect product from the CHT3 series for the required specifications and applications. Contact us: CAPTRON service.

Downloads

csm_CAPTRON-Thumb-SENSORswitches-Catalog_52e2e3f4fe
Catalog "Capacitive SENSORswitches"

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-SENSORswitches-CHT4-Instruction_9aedb8cca4
Instruction manual SENSORswitches "CHT4"

SENSORtaster

+ Download DE
+ Download EN
csm_thumb_CAPTRON-whitepaper-rail-transit-technology_e7573451de
White paper "Rail Transit Technology"

SENSORtaster

+ Download EN
csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c
TSI-PRM Technical file "SENSORswitches"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Industrial-Automation-Brochure_96fdc46651
Brochure "Industrial Automation"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-ECE-R118_2441f57ac9
Certificate "ECE R 118 statement"

+ Download DE
+ Download EN
+ Download
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e
Certificate SENSORswitches "EN 50155"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Traffic-and-Transport-Brochure_702ea7dcea
Brochure "Traffic and Transport"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-SENSORswitches-Product-Key_9d25a01b01
Product type key "Capacitive SENSORswitches"

SENSORtaster

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d
Certificate SENSORswitches CHT4 "EN 45545"

+ Download DE
+ Download EN
+ Download

Important properties

  • Touch Control
    High ease of use, no mechanical pressure required.
  • Feedback
    Visual, tactile and acoustic signals through 16 LEDs, vibration and beeper.
  • Shock-resistant
    The sensor cannot be destroyed by lighter flames or severe blows.
  • 100 % water & oil-proof - IP69K
    Sensor completely sealed in cast resin.
  • Durable service life
    More than 100 million operation cycles (transistor output).
  • Accessibility
    Braille and raised chevrons on coloured cover ring, 25 cm² operating surface.
  • TSI-PRM certified (depends on model)
    By directive 1300/2014.

Products

csm_CAPTRON-SENSORswitches-CHT4-0_1a8a662b3a

CHT4-0 (Sensor element)

Suitable for mounting in robust metal housings (aluminun anodized)

  • Ø 63 mm total diameter
  • 9,7 mm sensor element height



APPLICATION:
BUILDING TECHNOLOGY |  INDUSTRIAL AUTOMATION | TRAFFIC & TRANSPORT

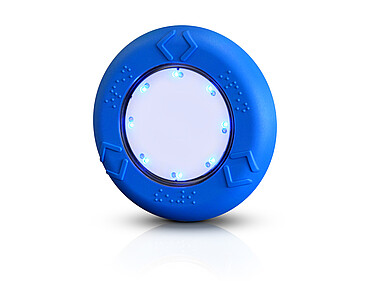

csm_CAPTRON-SENSORswitches-CHT4-2-Standard_8d3876a599

CHT4-2

For screw mounting

  • Ø 100 mm total diameter
  • V-mounting
  • Ø 27-60 mm mounting hole
  • 10 mm height


APPLICATION: BUILDING TECHNOLOGY | TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
