Level Sensors External Amplifier

Description

The external amplifier is connected to the rod probe via a shielded, temperature-resistant teflon cable. Due to the spatial separation between rod probe and amplifier, these probes are suitable for temperatures upto 230 ° C! They can be mounted over the mounting flange on a flat surface. Optional an adapter for rail mounting is available.

Our sensors measure levels in open or closed tanks and containers, in waters, wells and wastewater. Our hygienic versions are used, among others, in the food and beverage industry, biotechnology, pharmaceutical and chemical industries as well as medical technology.

The versatility of our level sensors allows almost universal use with different materials, rod lengths, additional options as well as specific standards and requirements. We will be happy to advise you. CAPTRON Service

Downloads

Important properties

  • Capacitive fill level measurement
    no mechanical moving parts
  • Special Options
    temperature sensor, increased pressure resistenance, WHG §19 approval
  • Sensor materials
    teflon, peek, stainless steel
  • Optical Feedback
    LED bar display
  • Protection
    IP67
  • Operating temperature
    Environment 0…+60°C, medium 0…+230°C, bearings -25…+80°C
  • Application areas
    oils, cooling lubricant emulsions, cleaning fluids, water and aqueous solutions, weak acids and alkalis, plastic granules and bulk solids, hygiene sector, pasty and solids-containing media, food and beverages

Products

csm_CAPTRON-Level-Sensors-external-amplifier-VA214_654738e1da

VA-214-SEP (Standard - external amplifier)

Punkt przełączania i wartość analogowa

  • Programowalny punkt przełączania NO/NC
  • Wyjście wartości analogowej jako prądu lub napięcia
  • Zabezpieczenie przed uszkodzeniem kabla
  • Zmierzona wartość jest czytelna na wzmacniaczu


ZASTOSOWANIE: BUDOWA INSTALACJI PRZEMYSŁOWYCH | Technologia Żywności

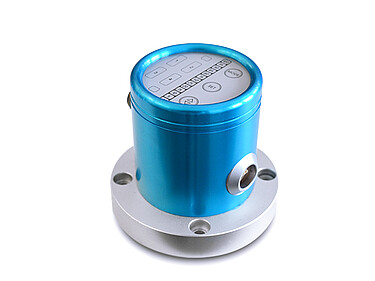

csm_CAPTRON-Level-Sensors-external-amplifier-VA244-Sep-4_03e18599e4

VA-244-SEP (4 switching outputs - external amplifier)

Four switching points

  • Four switching points NO / NC programable
  • Measured value displayed by amplifier



APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES

csm_CAPTRON-Level-Sensors-external-amplifier-VA234_35d79b84be

VA-234-SEP (Analog value + 3 switching points - separate amplifier)

Three switching points and one analog value

  • Three switching points NO / NC programable
  • Output of the analog value as current or voltage
  • Analog value with cable breakdown protection
  • Measured value displayed by amplifier

APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
