Level Sensors External Probes

Description

The CAPTRON standard probe rod is made of virgin PTFE (Teflon). It is available with diameters of 21 mm und 14 mm. The probe rod version can be selected: 1-rod version or 2-rod version are available. One of the outstanding features of the probe rods is that they are not available in pre-fabricated standard lengths, but that CAPTRON produces each probe with a maximum length of 3000 mm to the nearest millimetre in line with the customer’s request. The compact design allows medium temperatures up to 230°C. In addition, other rod materials, e.g. PEEK, are available upon request.

Downloads

csm_CAPTRON-Thumb-Industrial-Automation-Brochure_96fdc46651
Brochure "Industrial Automation"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Certificate-Level-Sensors-DIN-EN-50155_ee884743e6
Zertifikat Füllstandsensoren "EN 50155"

+ Download DE
+ Download EN
+ Download

Important properties

Products

csm_CAPTRON-level-sensors-external-probes-CAT-SEP_798526a7ff

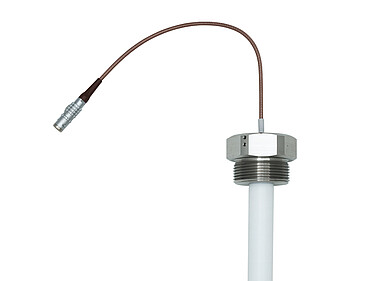

CAT-SEP (Probe)

Probe for connection to external amplifier

  • Teflon (PTFE) or PEEK
  • Probe length up to 3000 mm
  • Rod ø 21 mm or ø 14 mm
  • Suitable for liquid and solid mediums

APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES

csm_CAPTRON-level-sensors-external-probes-CTT-14-2-SEP_de00158e5b

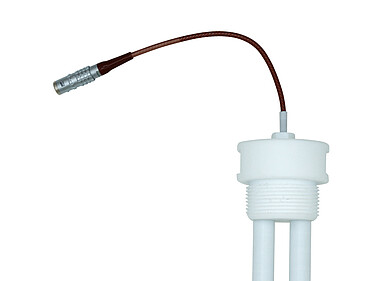

CTT-14-2-SEP (2-rod probe)

Probe for non-metallic tanks (external amplifier)

  • Teflon (PTFE) or PEEK
  • Probelength up to 3000 mm
  • Rod ø 21 mm or ø 14 mm
  • Suitable for liquid and solid mediums

APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
