Capacitive SENSORswitches CHT3

Description

Different shapes, installation depths and plug-in connections mean that the CHT3 series is suitable for a wide range of uses. Depending on the application, you can choose switches for flush installation, with fiber-glass-reinforced polycarbonate cover ring or with a protective collar to prevent accidental actuation or dirt for application areas in plant & mechanical engineering.

To meet the requirements of TSI-PRM, certificated CHT3 switches are suitable for use in transport engineering. For people with limited mobility, SENSORswitches are available with Braille or raised pictograms at the colored cover ring.

CHT3 switches can be equipped in addition to the visual signal through 16 bright LEDs with an acoustic beeper. It´s field of application covers installation in buses and trains as well as for emergency call and information columns.

CAPTRON can provide individual advice to enable you to choose the perfect product from the CHT3 series for the required specifications and applications.
Contact us: CAPTRON service.

Downloads

csm_CAPTRON-Thumb-SENSORswitches-Catalog_52e2e3f4fe
Catalog "Capacitive SENSORswitches"

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-SENSORswitches-CHT3-Instruction_9031918fd5
Instruction manual SENSORswitches "CHT3"

SENSORtaster

+ Download DE
+ Download EN
+ Download CN
csm_thumb_CAPTRON-whitepaper-rail-transit-technology_e7573451de
White paper "Rail Transit Technology"

SENSORtaster

+ Download EN
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d
Certificate SENSORswitches CHT3 "EN 45545"

+ Download DE
+ Download EN
+ Download
csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c
TSI-PRM Technical file "SENSORswitches"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Industrial-Automation-Brochure_96fdc46651
Brochure "Industrial Automation"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-ECE-R118_2441f57ac9
Certificate "ECE R 118 statement"

+ Download DE
+ Download EN
+ Download
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e
Certificate SENSORswitches "EN 50155"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Traffic-and-Transport-Brochure_702ea7dcea
Brochure "Traffic and Transport"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-SENSORswitches-Product-Key_9d25a01b01
Product type key "Capacitive SENSORswitches"

SENSORtaster

+ Download DE
+ Download EN
+ Download CN

Important properties

  • Touch Control
    High ease of use, no mechanical pressure required.
  • Feedback
    Visual and acoustic signals through 16 LEDs and beeper.
  • Shock-resistant
    The sensor cannot be destroyed by lighter flames or severe blows.
  • 100 % water & oil-proof - IP69K
    Sensor completely sealed in cast resin.
  • Durable service life
    More than 100 million operation cycles (transistor output).
  • Accessibility
    Braille and raised chevrons on coloured cover ring or sensor area.
  • TSI-PRM certified (depends on model)
    By directive 1300/2014.

Products

csm_CAPTRON-SENSORswitches-CHT3-1-Standard_c4141c71ba

CHT3-1/-2

For screw mounting

  • Ø 88 mm total diameter
  • A- / V-mounting
  • Ø 50-58 mm mounting hole
  • 7 mm height

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

csm_CAPTRON-SENSORswitches-CHT3-4_2e72662ec9

CHT3-4 (Mounting 22.5 mm)

For 22.5 mm mounting holes

  • Ø 60 mm total diameter
  • M18x1 knurled nut mounting
  • Ø 22.5 mm mounting hole
  • 25 mm height

APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION

csm_CAPTRON-SENSORswitches-CHT3-5-Protector_43a328bfe1

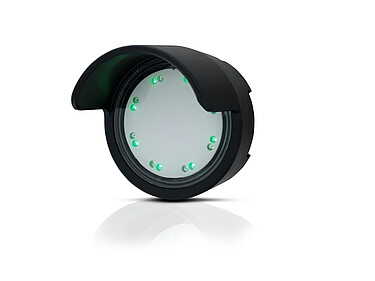

CHT3-5 (Mounting 22.5 mm with protector)

For 22.5 mm mounting holes with protetive collar

  • Ø 60 mm total diameter
  • M18x1 knurled nut mounting
  • Ø 22.5 mm mounting hole
  • 55 mm height

APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION

csm_CAPTRON-SENSORswitches-CHT3-F-Fronttafeleinbau_c29f0bee70

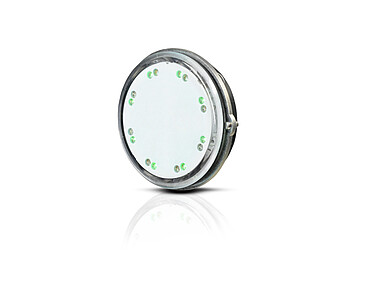

CHT3-F (Front plate)

For front plate mounting

  • Ø 50 mm total diameter
  • Front plate mounting with locking ring
  • Ø 48-48.5 mm mounting hole
  • 3.3 mm heigt

APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION
