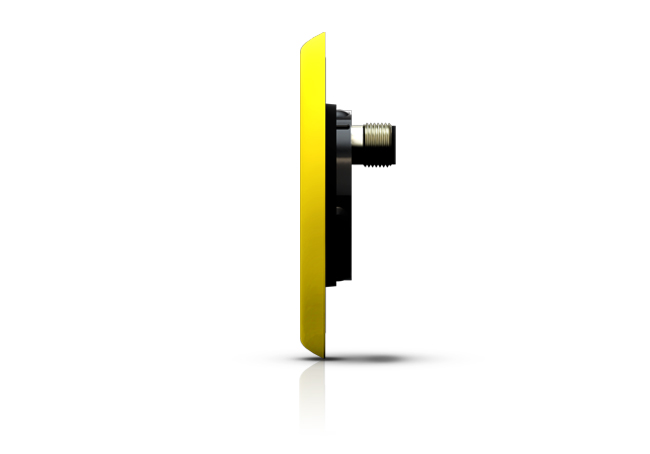

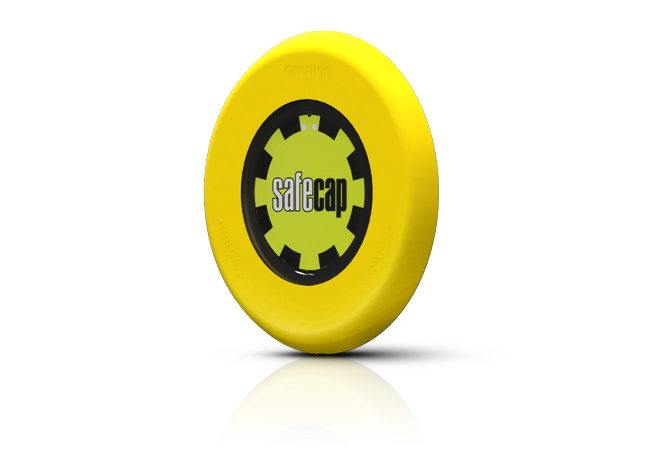

SC31 (dual channel)

Description

Can be used as a two-hand control in conjunction with an approved signal conditioning instrument.

APPLICATION: PUNCHING | PRESSING AND MORE

Visual feedback
Green LED (ready for operation)
Yellow LED (activated)
Certification
Certified with signal conditioning instruments (MCR-225 relay, PILZ PNOZ s6)
Can be used with all standard safety controllers and safety relays
100 % waterproof and oil-tight - IP68
Sensor is fully encapsulated

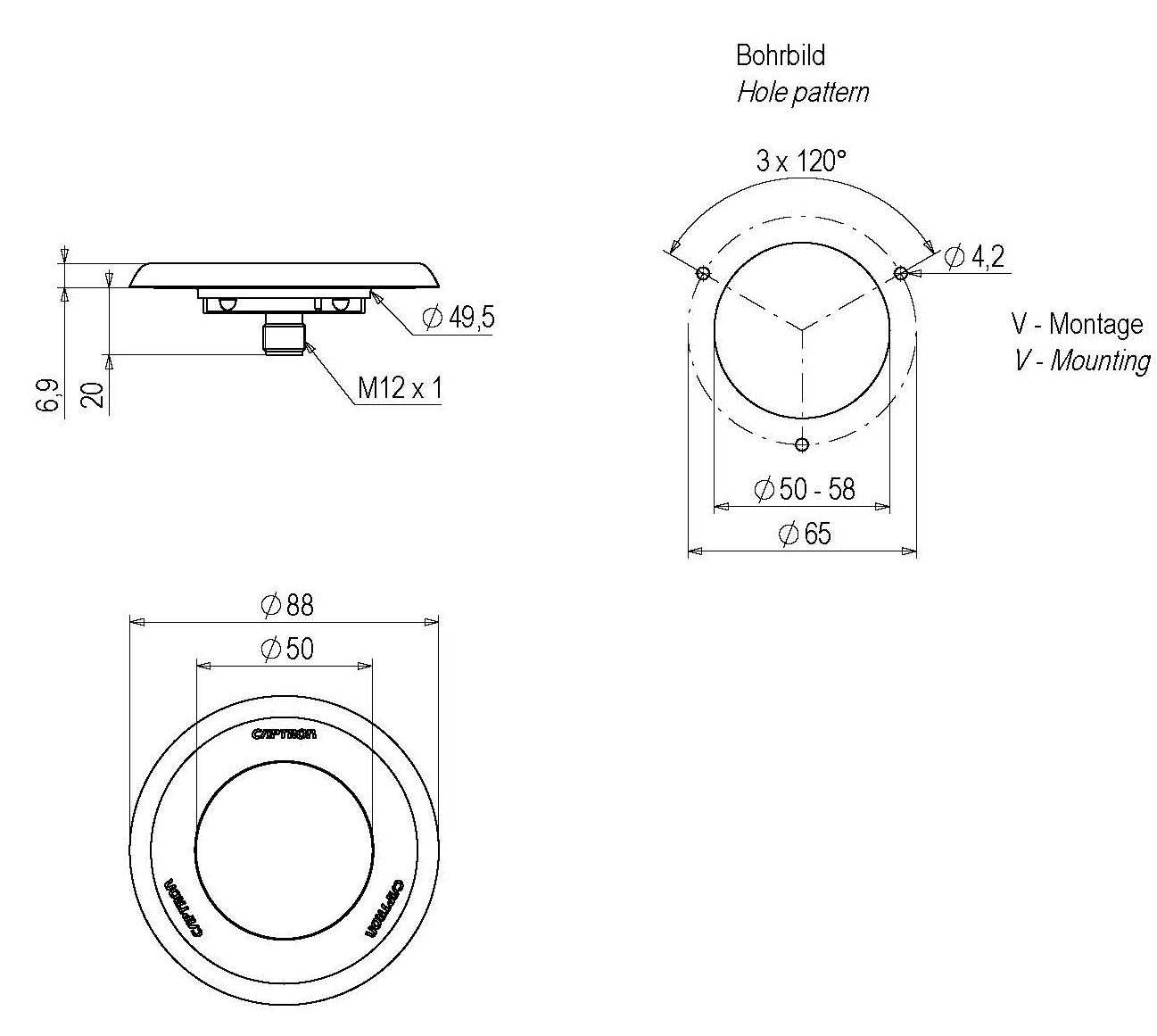

Physical design

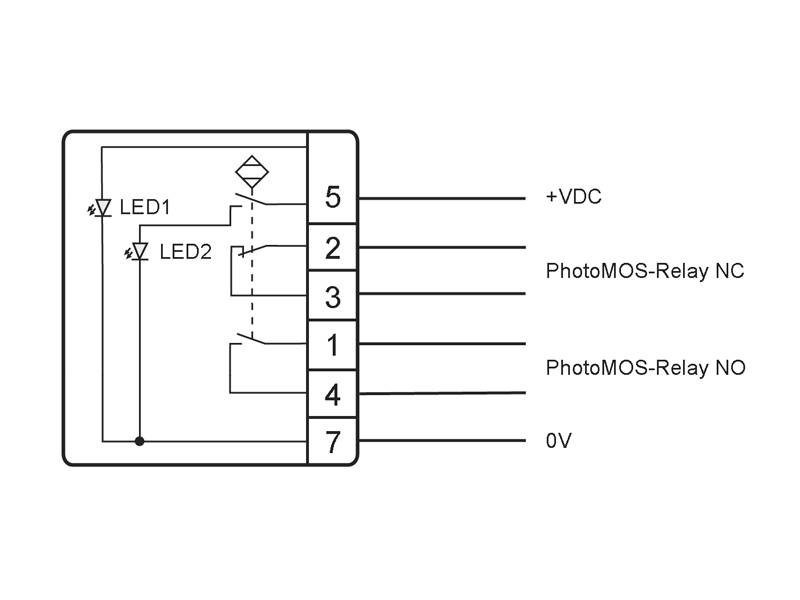

M12 5-pin and M12 8-pin (6-pin occupied)
Video

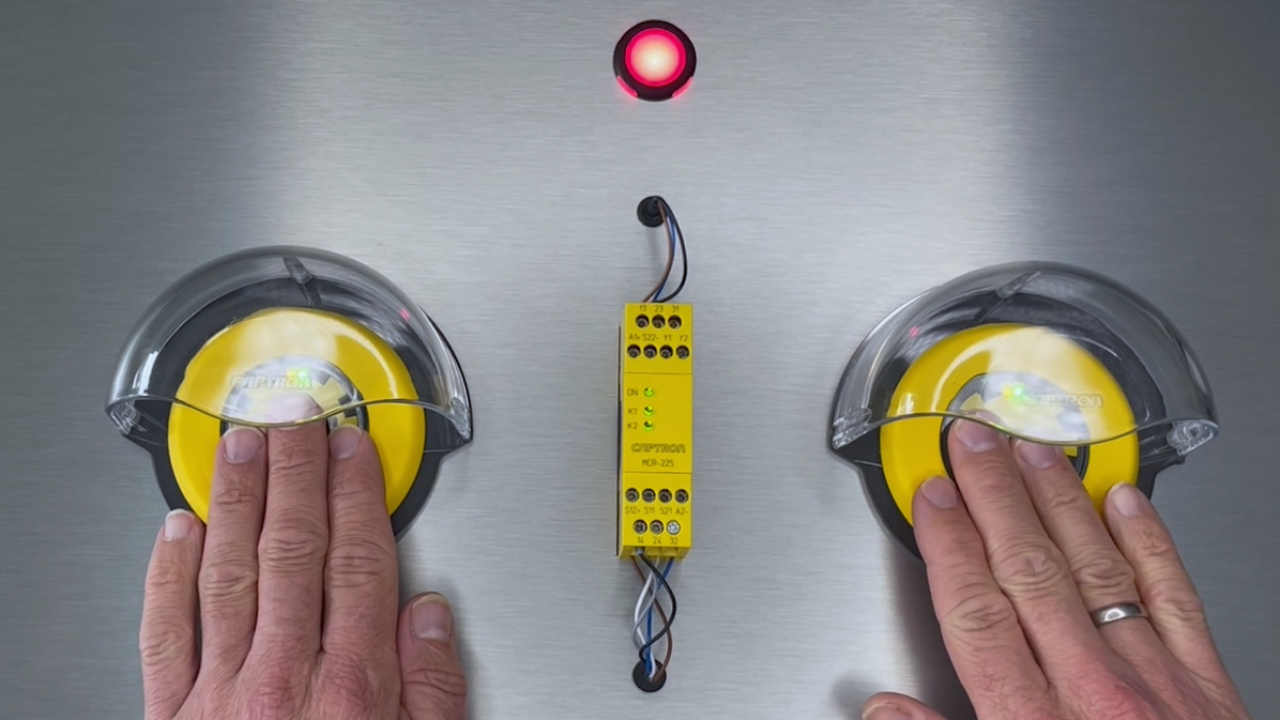

+ Safe machine operation via two-hand control

SC3x EC declaration of conformity

SC3x UKCA declaration of conformity

SC3x RoHS EC declaration of conformity

SC3x REACH EC declaration of conformity

STEP: SC31 dual channel 5pin

STEP: SC31 dual channel 6pin

EC-Type Examination Certificate SC3x No. M6A 028949

Supply voltage	24V DC (19,2...28,8 V)
Optical feedback	LED yellow LED green
Operating temperature	-25°C...+75°C
IP protection level	Front IP68 Back side IP67
Current consumption	Max. 20mA
Switch-off -delay	Max. 50 ms
Switch-on-delay	Max. 30 ms
Rated insulation voltage	32 V
Performance Level	Ple*
MTTFd	1123 years
PFHd	2,47 E-10 /h
Category	CAT 4*
DC	0 (99% mit Relais)
TM	20 years
Note*	Values are achieved in conjunction with an appropriately approved safety relay for two-hand controls

M12 cable for sensor connection
