SCP-7 Protector (Profile mounting)
Description
Protector for profile mounting of SC31, SL31
- Protector made of transparent polycarbonate
- Protection to avoid bypassing the two handed operation
APPLICATION: PUNCHING | PRESSES
- Avoid passing with the hand and elbow of the same arm ≥ 550 mm
- Avoid passing with the forearm(s) or elbow(s)
- Avoid passing with one hand and any other part of the body (e.g., knee, hip) ≥ 1100 mm
Downloads SCP-7 Protector
Service and Support

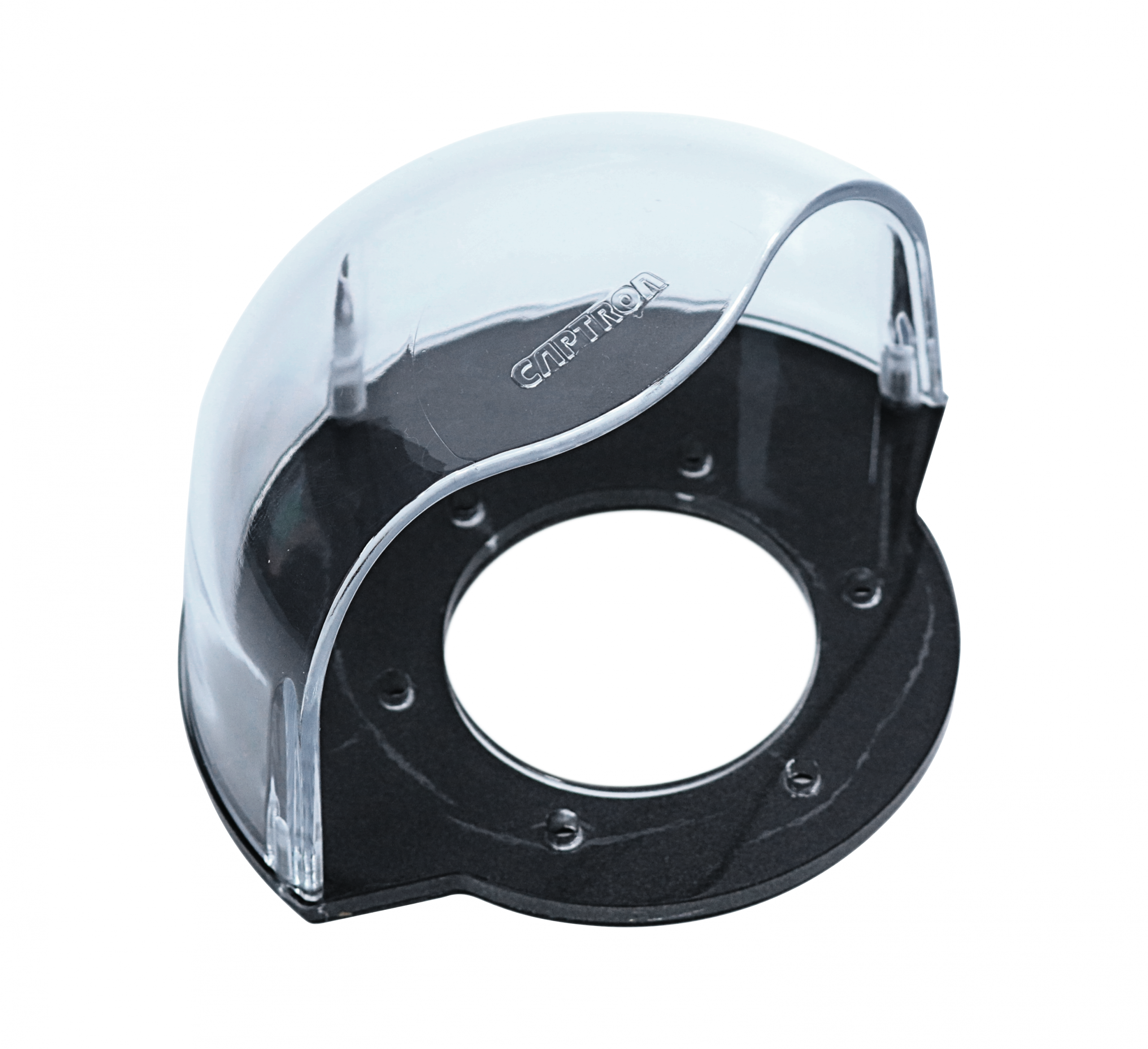

Product Images
![[Translate to Englisch:]](/fileadmin/user_upload/data/products/zb/CAPTRON_SCP-7_protector_SC31_SL31.png "[Translate to Englisch:]")

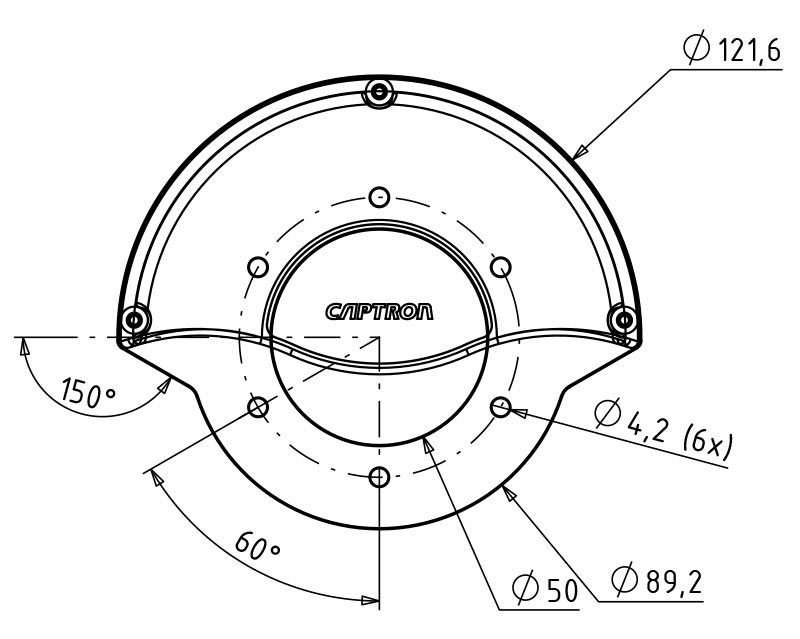

Technical Drawings
![[Translate to Englisch:]](/fileadmin/user_upload/data/products/zb/CAPTRON-drawing-Protector-for-SC31_SL31_SCP7.jpg "[Translate to Englisch:]")
Suitable Accessories
![[Translate to Englisch:]](/fileadmin/user_upload/data/products/st/images/SC3x/SC31_Front_650x454px.jpg "[Translate to Englisch:]")
SC31 (dual channel)
Can be used as a two-hand control in conjunction with an approved signal conditioning instrument.
- Ø 50 mm sensing face
- Flat overall height (7 mm)
- Certified with MCR225 and PILZ PNOZ s6
- TÜV SÜD tested (EN ISO 13849-1, EN ISO 13851)
APPLICATION: PUNCHING | PRESSING AND MORE
![[Translate to Englisch:]](/fileadmin/user_upload/data/products/st/images/SL3x/SL31_Hand_Front_650x454px.jpg "[Translate to Englisch:]")
SL31
Capacitive SENSOR pushbutton with two antivalent potential-free contacts.
- Ø 50 mm sensing surface
- Only 7 mm installation height
- Mounting via Ø 50–58 mm installation opening and 3 screws (V-mounting)
- Antivalent potential-free PhotoMOS relays (NO/NC)
- No independent approval according to EN ISO 13849-1
APPLICATION: Two-hand operation for assembly equipment
