SL30

Description

Can be used as a two-hand control after risk assessment and corresponding design of the associated assemblies.

Ø 50mm sensing face
Installation via standardized Ø 22.5mm mounting hole

APPLICATION: Two-hand operation for assembly equipment

Visual feedback
green LEDs (ready for operation)
red LEDs (switching)
Compatible with signal conditioning instruments
For two-handed operation
100 % water and oil-tight - IP69K
Sensor is completely encapsulated with special resin
M12 connection
5-pin
Video
+ Safe machine operation via two-hand control

Downloads SL30

csm_SL30_SL31_EC_Declaration_of_Conformity_b1fafcdc8f

SL3x EC declaration of conformity

csm_SL30_SL31_UKCA_Declaration_of_Conformity_a450212c3d

SL3x UKCA declaration of conformity

csm_SL30_31_EC_Declaration_of_Conformity_7827f97d34

SL3x RoSH EC declaration of conformity

csm_SL30_31_EC_Declaration_of_Conformity_REACH_af253e5ca8

SL3x REACH EC declaration of conformity

csm_SL30_31_BA_V1.0_en_300e18977f

SL3x manual en

csm_SL30_datasheet_en_0bdf43bbb0

SL30 datasheet en

STEP: SL30

Service and Support

Request a quote

Download center

Technical support

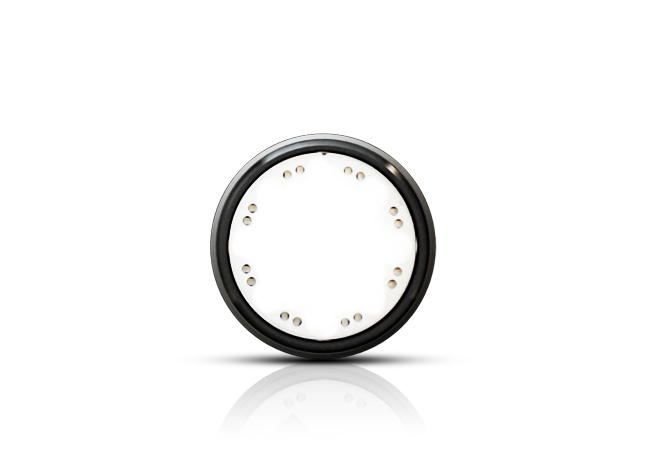

Product Images

[Translate to Englisch:]

[Translate to Englisch:]

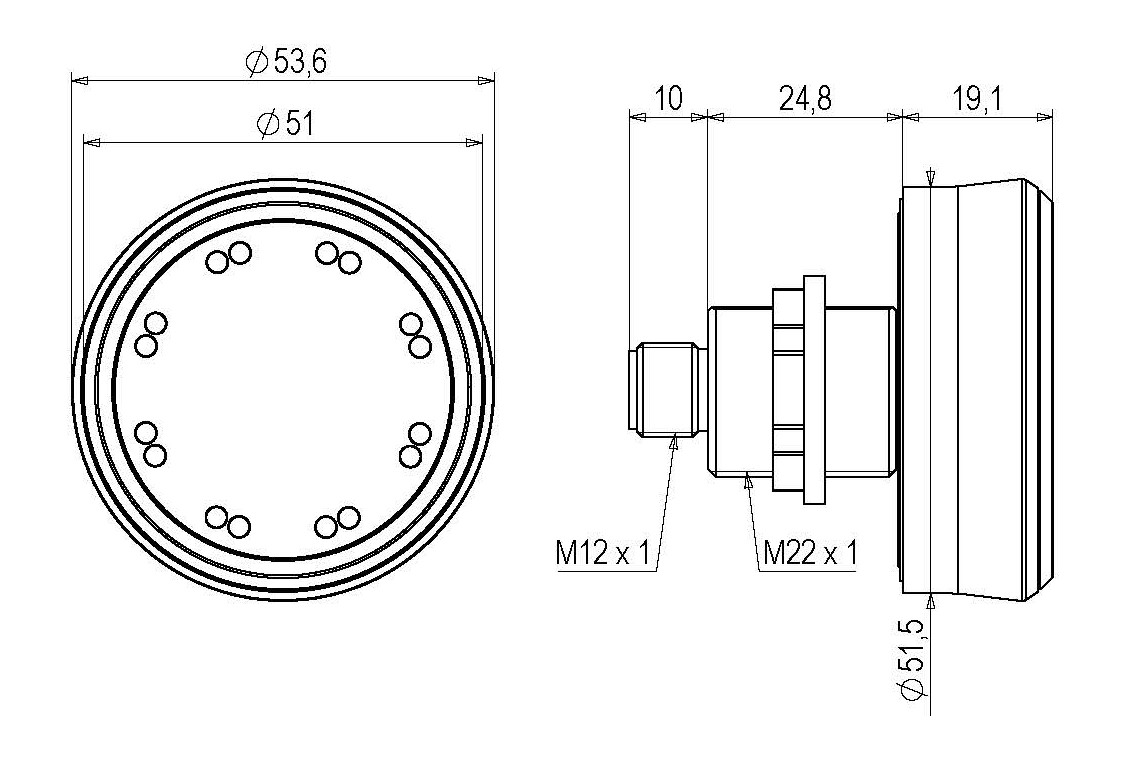

Technical Drawings

[Translate to Englisch:]

Anschlussbild_SL3x

Housing colors

Housing traffic black (RAL 9017)

Features

Function: Static (permanent signal)
Switching output: PhotoMOS relay NC contact, NO contact

Specifications

Supply voltage	24 V (10...32 V)
Output	PNP, NO/NC umschaltbar
Verlustleistung	Max. 300mA at the switching contact
Load current	Max. 300mA per switching contact
Durchlasswiderstand	< 2.5 Ohm
Schaltverhalten	Continuous switching when actuated
Optical feedback	LED green LED red
Connection	M12
Wire count	5-pole
Operating temperature	-20°C...+60°C
IP protection level	Front IP69K Back side IP67
Switch-off -delay	Max. 100 ms
Switch-on-delay	Max. 50 ms
Rated insulation voltage	32 V

Suitable Accessories

CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M12

Cable M12

M12 cable for sensor connection

Straight or angled connector
Different lengths are available
Different numbers of cores are available
Screw mounting

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

CAPTRON-Accessoires-SCP-6-Protector

SCP-6 Protector

Protector for profile mounting of SC30, SL30

Protector made of transparent polycarbonate
Protection to avoid bypassing the two handed operation

APPLICATION: PUNCHING | PRESSES

CAPTRON-Zubehoer-Bedienpult-SC3-Pult-1

SC-Pult 1

Operator control for SC30, SL30

Made of glass fiber reinforced plastic
Protection to avoid bypassing the two handed operation

APPLICATION: PUNCHING | PRESSES
