SL31

Description

Capacitive SENSOR pushbutton with two antivalent potential-free contacts.

  • Ø 50 mm sensing surface
  • Only 7 mm installation height
  • Mounting via Ø 50–58 mm installation opening and 3 screws (V-mounting)
  • Antivalent potential-free PhotoMOS relays (NO/NC)
  • No independent approval according to EN ISO 13849-1


APPLICATION: Two-hand operation for assembly equipment

  • Visual feedback
    green LEDs (ready for operation)
    red LEDs (switching)
  • Compatible with signal conditioning instruments
    For two-handed operation
  • 100 % waterproof and oil-tight - IP69K
    Sensor is completely encapsulated with special resin
  • M12 connection
    5-pin
  • Video
    + Safe machine operation via two-hand control

Downloads SL31

csm_SL30_SL31_EC_Declaration_of_Conformity_b1fafcdc8f
SL3x EC declaration of conformity

+ Download
csm_SL30_SL31_UKCA_Declaration_of_Conformity_a450212c3d
SL3x UKCA declaration of conformity

+ Download
csm_SL30_31_EC_Declaration_of_Conformity_7827f97d34
SL3x RoSH EC declaration of conformity

+ Download
csm_SL30_31_EC_Declaration_of_Conformity_REACH_af253e5ca8
SL3x REACH EC declaration of conformity

+ Download
csm_SL30_31_BA_V1.0_en_300e18977f
SL3x manual en

+ Download
csm_SL31_datasheet_en_36b48c325d
SL31 datasheet en

+ Download
SL31_5-Pin
STEP: SL31

+ Download

Service and Support

Request a quoteDownload centerTechnical support

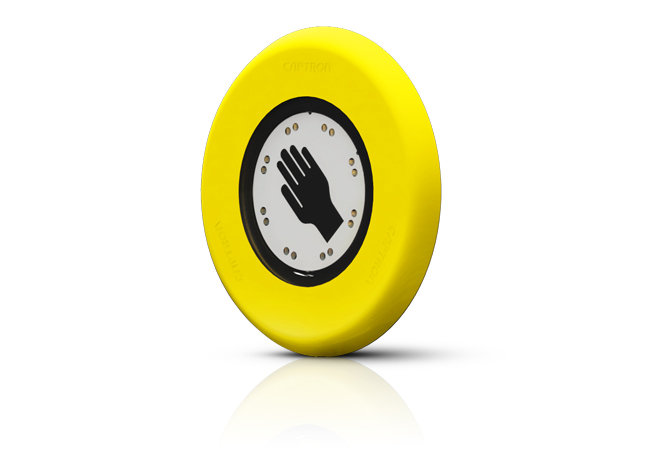

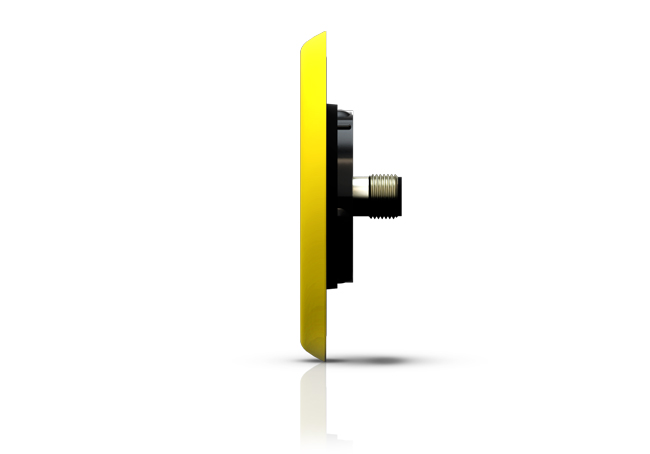

Product Images

[Translate to Englisch:]
[Translate to Englisch:]
[Translate to Englisch:]

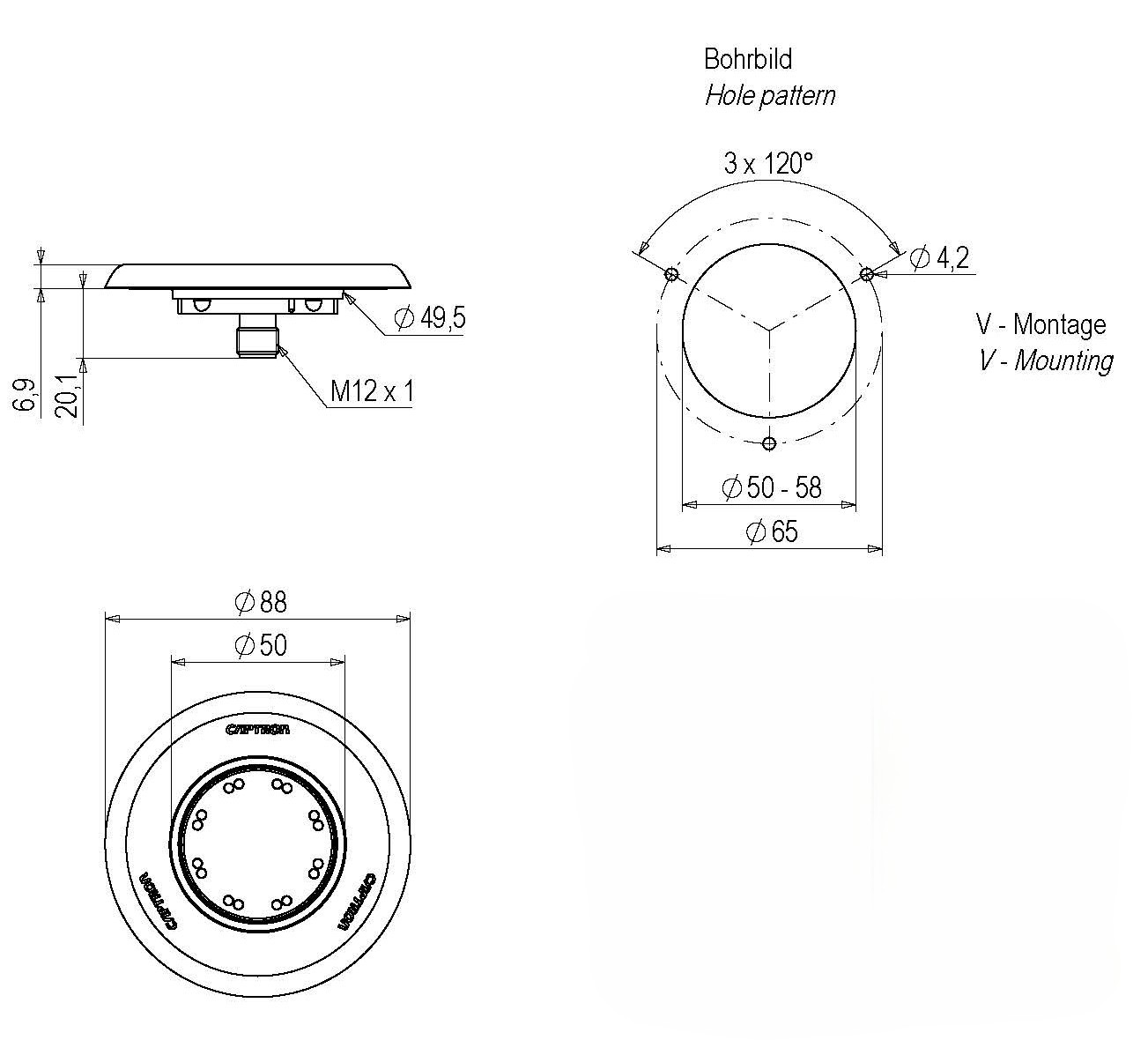

Technical Drawings

[Translate to Englisch:]

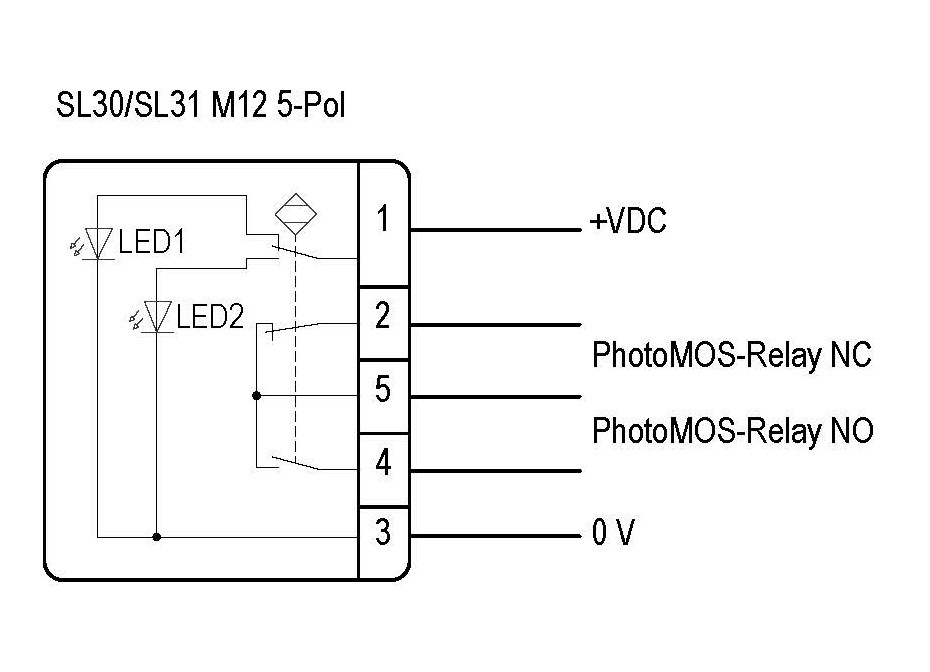

Anschlussbild_SL3x

Housing colors

  • RAL9017-VerkehrsschwarzHousing traffic black (RAL 9017)

Features

  • staticFunction: Static (permanent signal)
  • relSwitching output: PhotoMOS relay NC contact, NO contact

Specifications

Supply voltage 24V DC
Output PNP, NO/NC umschaltbar
Verlustleistung Max. 300mA at the switching contact
Load current Max. 300mA per switching contact
Durchlasswiderstand < 2.5 Ohm
Schaltverhalten Continuous switching when actuated
Optical feedback LED green
LED red
Connection M12
Wire count 5-pole
Operating temperature -20°C...+60°C
IP protection level Front IP69K
Back side IP67
Current consumption Max. 25mA at 24V
Switch-off -delay Max. 100 ms
Switch-on-delay Max. 50 ms
Rated insulation voltage 32 V

Suitable Accessories

CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M12

Cable M12

M12 cable for sensor connection

  • Straight or angled connector
  • Different lengths are available
  • Different numbers of cores are available
  • Screw mounting
