Automatic calibration of tool center points

In many robot applications, such as dispensing or welding, the tool is constantly changing due to wear or deformation. As these applications often rely on the highest possible accuracy, it is necessary to regularly check and calibrate the tool center point (TCP) of the tool, e.g. after a tool change, after each maintenance, at the beginning of a work shift or even after each process cycle. The recalibration should occur automatically. This minimizes downtime, reduces scrap and rework, and increases the quality of the produced products.

Benefits of automatic recalibration

  • Minimization of downtimes
    An automatic control and calibration process reduces production interruptions.

  • Increasing accuracy and quality
    Regular inspection and calibration of the TCP ensures that robot applications are always carried out with the highest precision.

  • Reduction of rejects and rework
    Accurate calibration minimizes errors, collisions and deviations in the production process, resulting in less scrap and rework.

  • Reliable tool change
    After each tool change, the robot can run through a quick calibration routine to ensure that the tool has been inserted correctly and properly.

  • Unrivaled speed
    The quick check and calibration of the TCP saves time after tool changes or when using different workstations with one cobot.
Contact us
[Translate to Englisch:] Software Icon
Software URCap
Version 1.3.0_1
Download
[Translate to Englisch:] TCP Anleitung Icon
Manual
Version 1.3.0_1
Download
[Translate to Englisch:] Software License Key Icon
License
Key Generator
Learn more

DEMO VIDEO FOR TCP (RE-)CALIBRATION

In numerous robot applications such as dispensing, welding or gluing, nothing stays the same - tools wear out and deform. This is exactly where maximum efficiency and precision are essential! This is why the tool center point must be constantly checked, calibrated and recalibrated. Whether after a tool change or after maintenance - recalibration is a must!

As a UR+ partner, we take our TCP measurement technology to the next level with UR robots. Our innovative URCap takes over the monitoring and correction of the TCP fully automatically. Thanks to predefined motion sequences and control commands, programming is child's play. And best of all, our system is tested and certified by UR!

Optimize your robot applications with our automatic TCP recalibration and experience a new dimension of efficiency and precision!

The UR+ ecosystem

As a UR+ partner, we would like to facilitate the use of CAPTRON TCP measurement technology with UR robots. We have developed a URCap for the integration of the hardware, which automates the monitoring and correction of the TCP. Predefined motion sequences and control commands simplify programming. Our system has been tested and certified by UR. Find out more about UR+ here.

The URCap in use

The URCap includes the following services:

  • An installation page for tool calibrations with step-by-step setup of up to 10 different TCPs (measurement of X-Y-Z reference values and tool tip diameter)
  • Automatic TCP recalibration can be started manually by the operator via the installation page
  • A program node for automatic checking and recalibration of a TCP in a running program, limit values and speeds can be defined
  • The program node can be used to check, validate or recalibrate the TCP, with or without adjusting the orientation of the robot arm


The URCap is suitable for the following applications, among others:

  • Dosing, Gluing, Pipetting
  • Welding
  • Soldering
  • Drilling
  • Milling

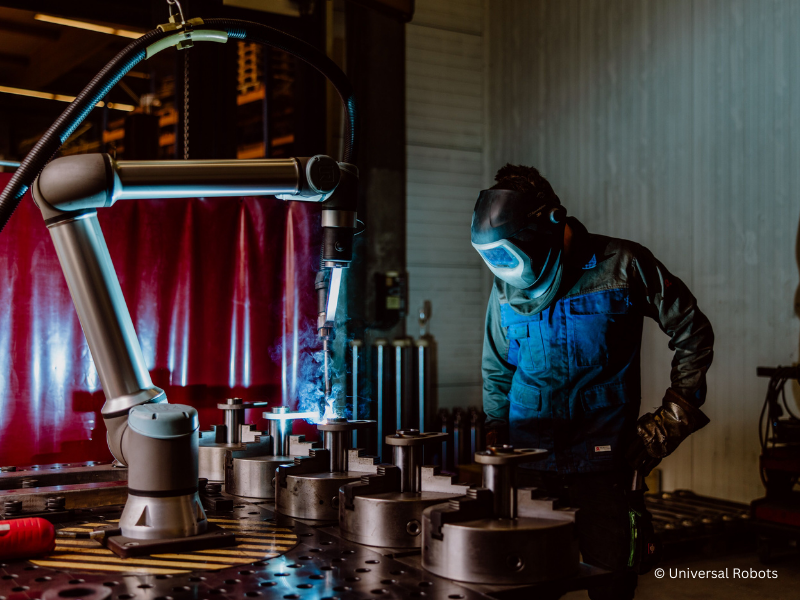

Simple welding

With our solution, you can achieve the following for your welding application:

  • Minimization of downtimes
  • Increased accuracy and quality
  • Reduction of rejects and rework
  • Reliable tool changes
  • Previously unattainable speeds



More about welding applications: https://www.universal-robots.com/applications/welding/

[Translate to Englisch:] UR CaseStory Hofmann Glastechnik

Precise Bonding

Thanks to our solution, you can achieve the following for your dispensing application:

  • Minimization of downtimes
  • Increased accuracy and quality
  • Reduction of rejects and rework
  • Reliable tool change
  • Previously unattainable speeds



More about dispensing applications: https://www.universal-robots.com/applications/dispensing/

[Translate to Englisch:] Universal Robots Cobot Anwendung Kleben

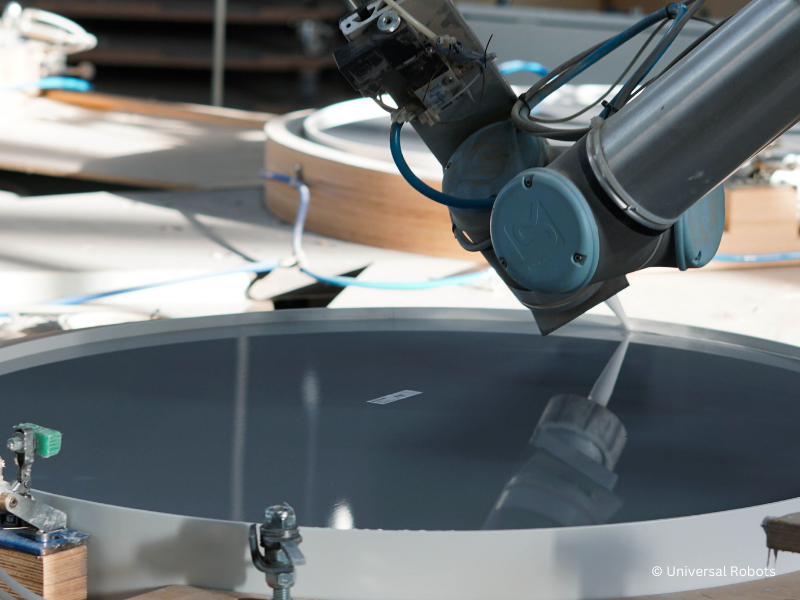

Precise plotting

For your dispensing application, you therefore guarantee:

  • Minimization of downtimes
  • Increased accuracy and quality
  • Reduction of rejects and rework
  • Reliable tool changes
  • Previously unattainable speeds



More about dispensing applications: https://www.universal-robots.com/applications/dispensing/

[Translate to Englisch:] UR CaseStory Steelcase

Safe welding

With our solution, you can achieve the following for your welding application:

  • Minimization of downtimes
  • Increased accuracy and quality
  • Reduction of rejects and rework
  • Reliable tool changes
  • Previously unattainable speeds



More about welding applications: https://www.universal-robots.com/applications/welding/

[Translate to Englisch:] Universal Robots Cobot Anwendung Schweißen

Frequently asked questions

What is a URCap?

A URCap is a software plug-in for robots from Universal Robots (UR).
URCap extends the functionality and user-friendliness of the robots.

Which UR robots is the URCap compatible with?

The URCap is compatible with all UR e-Series (UR3e, UR5e, UR7e, UR10e, and UR16e) robots and UR8 Long / UR15 / UR18 / UR20 / UR30 with Polyscope, from version 5.11.

Find out more at: https://www.universal-robots.com/products/

What do I need to be able to use the URCap?

The URCap was developed for use with a CAPTRON TCP measuring unit.
The following products are supported:

URCaps are installed and configured via the robot's Polyscope control panel.

What applications is the URCap suitable for?

TCP monitoring and calibration is important for complex tasks that require precision and repeatability, like dispensing and welding.

When using different tools, the URCap allows for fast and precise checking of each tool.

Which tools are compatible with the URCap?

The TCP measuring units are primarily designed for rotationally symmetrical tools, e.g. welding rods, (conical) dispensing needles, soldering tools, plasma nozzles, drills, milling cutters, pipettes, etc.
Other tools can be calibrated with the aid of a measuring mandrel, e.g. grippers, cameras, etc.

Can I recalibrate several robots with one TCP measuring unit?

Several robots can be recalibrated with one TCP measuring unit (with a splitter cable).
The license is limited to one robot / cobot

How long does a calibration take?

The calibration process itself only takes a few seconds.

What is the URCap activation process?

After purchasing the software, you will receive a TCP Product Key.
Activation of the license takes place via the Software License Key Generator which is entered directly on the controller.
The URCap only needs to be activated once. The license is not limited in time and is therefore a one-time purchase.

More videos about using the software

What do I need to know for the initial setup?

[Translate to Englisch:] tcp installation software

Discover how easy it is to automatically calibrate a UR robot with our TCPs! In this video we show you how you can easily calibrate your UR robot with our innovative software “URCap” and our Tool Center Points (TCPs). Follow the entire calibration process step by step and learn how our solution makes your robot applications more precise and efficient.

As a UR+ partner, we have taken the integration of our TCP measurement technology with UR robots to a new level. With our URCap, monitoring and setting the Tool Center Point is fully automatic and child's play. Our system is tested and certified by UR to provide you with seamless and precise results!

How do I recalibrate the TCP with the software?

Experience an impressive demonstration in which our UR robot calibrates itself independently with the help of our TCPs (Tool Center Points). Thanks to the innovative URCap software, this calibration process is fully automatic and extremely precise.

See first-hand how state-of-the-art robot technology and intuitive software solutions work together perfectly to take automation in the industry to a new level. Let the future of robotics excite and inspire you!
