Two-hand control SL3x

Description

Dual-channel capacitive pushbuttons for demanding applications
The SL3x series is a capacitive, dual-channel SENSOR pushbutton with antivalent NO/NC outputs - ideal for applications where a dual-channel pushbutton is required, for example in semi-automatic or supportive processes.

Force-free actuation - ergonomic & repeatable
As with all CAPTRON switches, actuation is capacitive and force-free - ideal for frequent actuation and fatigue-free working. Reliable operation is ensured even when wearing work gloves.

Robust & durable - developed for industrial use
The sensors are fully encapsulated, impact-resistant and resistant to oil, water and dust. Thanks to wear-free sensor technology, several hundred million switching cycles are possible without any problems - without replacement, without failures.

Flexible installation options

SL30: Ø 22.5 mm installation opening
SL31: Ø 50-58 mm with 3-point mounting - only 7 mm installation height

Can be supplemented with suitable accessories
Optionally available protectors and desk mounting consoles enable ergonomic and customized solutions - also for retrofitting.

Get in touch with us. CAPTRON Service

Downloads

csm_SL30_SL31_EC_Declaration_of_Conformity_b1fafcdc8f

SL3x EC declaration of conformity

csm_SL30_SL31_UKCA_Declaration_of_Conformity_a450212c3d

SL3x UKCA declaration of conformity

csm_SL30_31_EC_Declaration_of_Conformity_7827f97d34

SL3x RoSH EC declaration of conformity

csm_SL30_31_EC_Declaration_of_Conformity_REACH_af253e5ca8

SL3x REACH EC declaration of conformity

Service and Support

Request a quote

Download center

Technical support

Important properties

Floating PhotoMOS relays with antivalent NO/NC outputs
M12 connection 5-pin
100% water- and oil-tight
Protection class IP69K, fully encapsulated
Extremely long service life
Several 100 million switching cycles
Impact-resistant & robust
Protection class IK08
Touch sensor
High ease of use, no effort required
No strain on the wrists

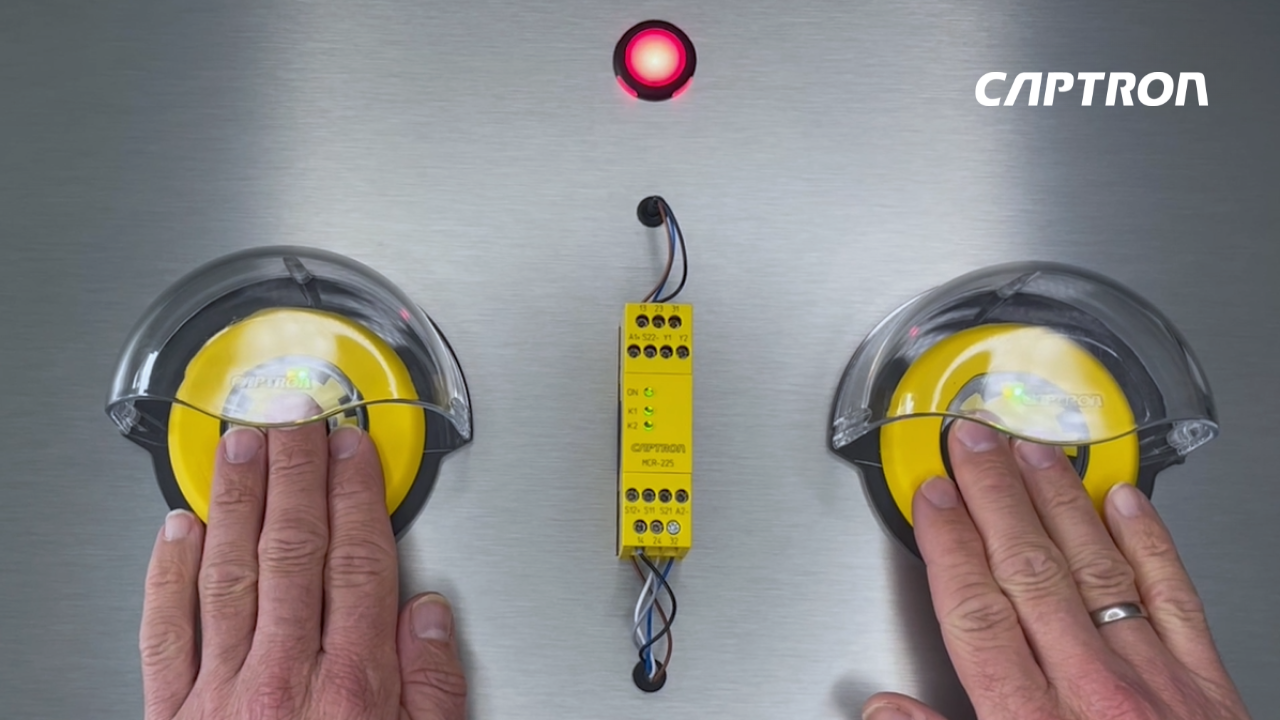

video-shadow-overlay

SL3x

Watch video now

Products

[Translate to Englisch:]

SL30

Can be used as a two-hand control after risk assessment and corresponding design of the associated assemblies.

Ø 50mm sensing face
Installation via standardized Ø 22.5mm mounting hole

APPLICATION: Two-hand operation for assembly equipment

[Translate to Englisch:]

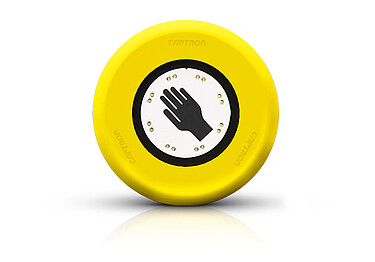

SL31

Can be used as a two-hand control after risk assessment and appropriate design of the associated assemblies.

Ø 50 mm sensing face
Very flat installation via Ø 50 - 58 mm mounting hole and 3 screw fixing (V-mounting)

APPLICATION: Two-hand operation for assembly equipment
