ORDER PICKING WITH CAPACITIVE SENSOR TECHNOLOGY

A high-quality Pick-by-Light solution that
makes intralogistics processes more effective

Modern logistics processes are complex: When individual batch sizes are picked for the next step in a distribution or fulfilment centre, the receipt and dispatch of large quantities of goods needs to be documented reliably, quickly and easily.

With the Pick-by-Light System oneGRID, CAPTRON presents a flexible and proven solution that can be used in a variety of situations – whether man-to-goods or goods-to-man. Intelligent, virtually indestructible Pick-Acknowledge Units with display function serve as the interface between picker and IT. This makes the system perfectly optimized for interaction with ERP and logistics solutions and adaptable to individual and evolving requirements within a very short time.

While conventional picking systems with push buttons fail under heavy-duty use, the oneGRID Pick-Acknowledge Units reliably performs over millions of switching operations. At the same time, the Pick-by-Light System from CAPTRON is faster and comfortable to operate, provides more precise instructions for your employees and can also be easily adapted to changing tasks.

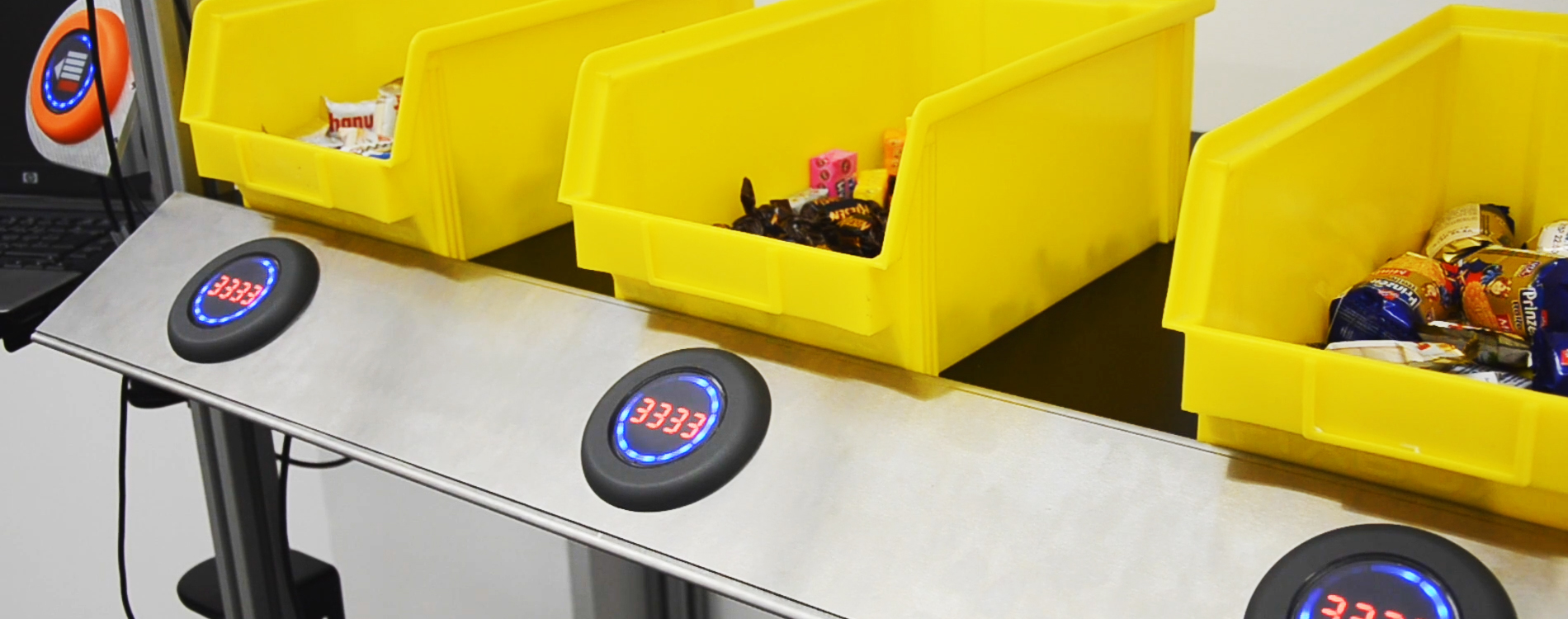

Product video

Watch the film

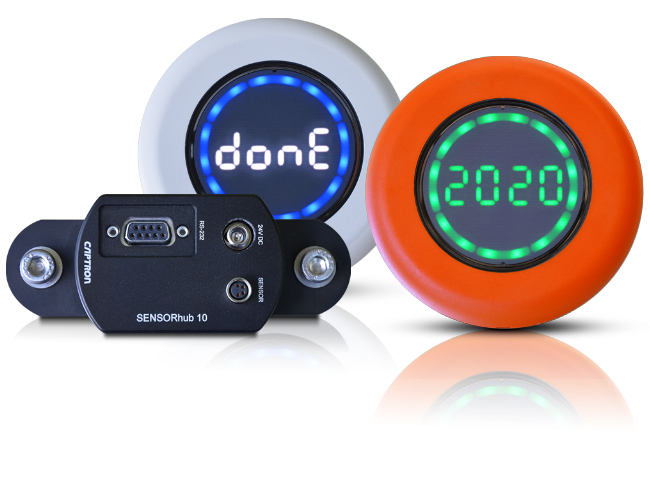

The oneGRID Pick-Acknowledge Units

A central element of oneGRID is the Pick-Acknowledge Unit, a robust switch that is protected against extreme demands. It operates according to the capacitive measuring principle and thus triggers once touched. An integrated LED display or corresponding symbols show the picker how many parts need to be removed during picking.

Thanks to its additional LED ring, the work of up to seven employees can be efficiently coordinated using colour codes. All functions relating to display and colour reproduction can be easily adapted to specific requirements in the warehouse. The Pick-Acknowledge Units connected to the SensorHub control unit via a ring connection configure themselves automatically via the network.

Regardless of whether it is simply a matter of implementing paperless picking or the strategic implementation of a method such as Kanban – oneGRID is the ideal solution for your project!

Your benefits

Increased efficiency

Thanks to the large pick display and unique colour codes, pickers can find the goods they need in record time – in practice, picking processes are about 20 to 25 percent faster with oneGRID. The actual shifting process takes place without any mechanical pressure: Your employees not only reach their destination more effectively, but also healthier and ergonomic.
With oneGRID, you can increase efficiency not only in the picking process: the number of remaining pieces is clearly visible at all times. This speeds up filling processes as well.

Long-lasting investment

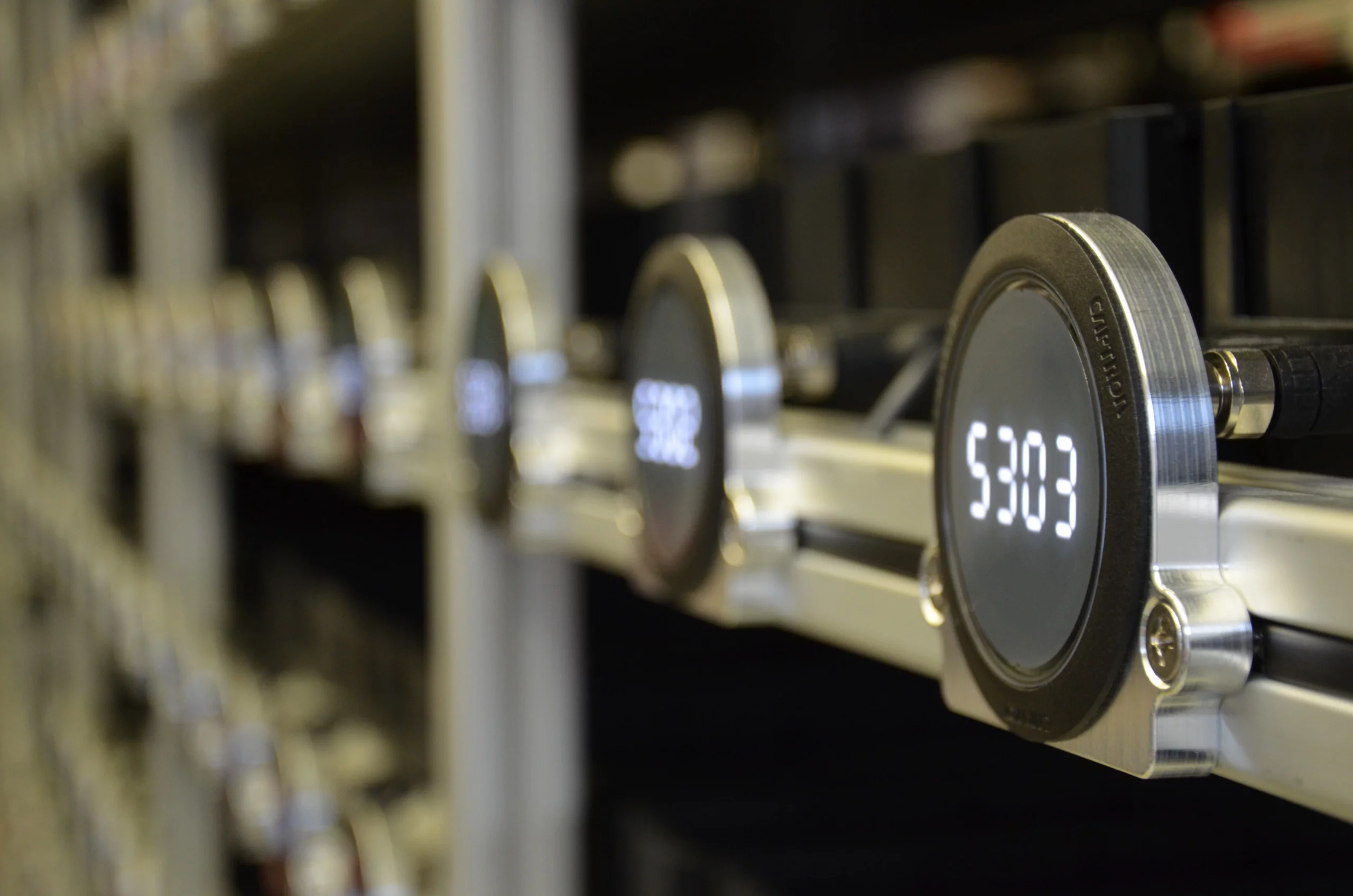

The Pick-Acknowledge Unit is protected against shocks, water and dust (IP67, IP69K) and has proven itself in continuous use even under the toughest conditions. Due to its extremely low downtime the investment pays for itself within a very short time. At the same time, it can be integrated into all shelf configurations in a space-saving manner using a special bracket.

Faster start

The operation of oneGRID can be learned within a few minutes. This enables temporary and seasonal workers to get started quickly and reduces the error rate.

Improved integration

oneGRID works well with all common logistics and backend applications. Additional oneGrid Units can be integrated during operation via the central SensorHub control interface. They configure themselves automatically. This makes oneGRID Pick-by-Light to the ideal solution in a dynamic environment.

Logistics 4.0 with oneGRID

With oneGRID, companies receive a picking system that brings greater efficiency to the supply chain with its innovative pick-by-light approach. It can be optimally adapted to the needs and requirements of complex logistics processes and brings a return on investment within a short time frame.

Industries

oneGRID meets all requirements for picking and order picking of all types of products. This makes the solution suitable for all areas of application:

E-Commerce and retail
Spare parts business / distribution
General cargo distribution
Food industry
Medtech and pharma

KEY FACTS:

Engineering & Consultation
Providing real tangible ROI for your company
Reliability
Fully shock, vibration, water and dust proof (IK08 and IP69K which is equivalent to Nema 6P)
Display & Switch in one
Large display to show different quantities and customized text messages with integrated touch button
Ease of use
No mechanical force required, easy & secure to use due to capacitive technology

Durability
More than 100 million activation cycles possible
Customizability
Appearance (colors, symbols) and functionality as per your needs
Capabilities
Multi-picking capabilities for up to 7 staffers at the same time, multi storage assignments through 4 clear segmented LED's, easy & secure to use due to capacitive technology
Certifications
UL 60950 certified & NRTL compliant
