CHT5-2/#° (Profile angle)

Description

Two-sided operation through single glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 84°, 80°, 60°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

  • Customization
    Symbols and housing colors
  • TSI-PRM conform
    Pictograms and braille available
    Optical feedback through LEDs
    No operation force needed
  • 100 % water and oil-proof - IP69K
    Sensor is completely sealed in cast resin

Downloads CHT5-2/#°

Product Images

CAPTRON-SENSORswitches-CHT5-2-Profileangle

Technical Drawings

CAPTRON-drawing-CHT5-2-Standard
CAPTRON-drawing-60angle-CHT5-2-Standard
CAPTRON-drawing-80angle-CHT5-2-Standard
CAPTRON-drawing-84angle-CHT5-2-Standard

Application Images

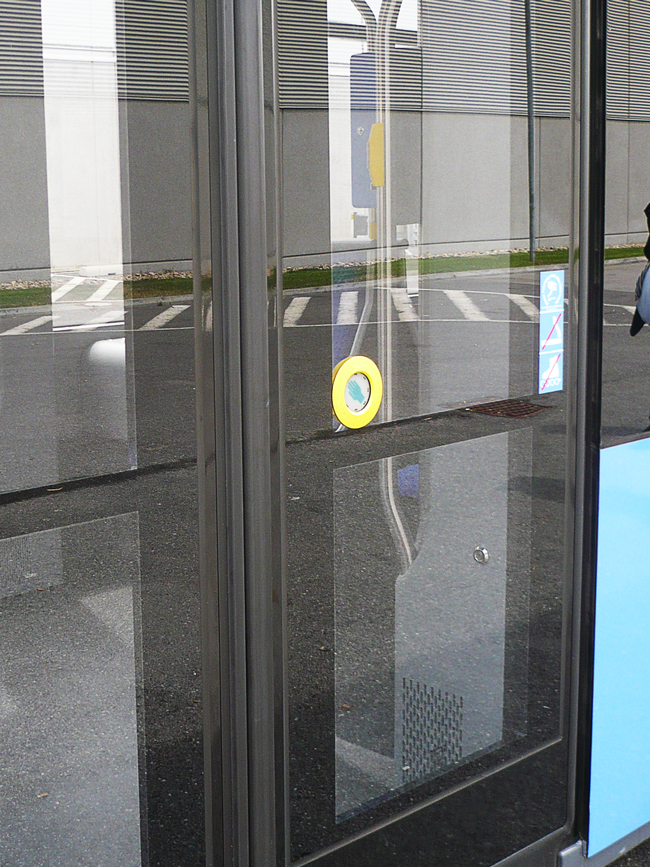

CAPTRON-SENSORswitches-CHT5-1-Application-002
CAPTRON-SENSORswitches-CHT5-1-Application-003

Housing colors

  • RAL3020-VerkehrsrotHousing traffic red (RAL 3020)
  • RAL1023-VerkehrsgelbHousing traffic yellow (RAL 1023)
  • RAL5015-HimmelblauHousing sky blue (RAL 5015)
  • RAL6024-VerkehrsgruenHousing traffic green (RAL 6024)
  • RAL9017-VerkehrsschwarzHousing traffic black (RAL 9017)
  • RAL7042-Verkehrsgrau-AHousing traffic grey A (RAL 7042)

Features

  • dynamicFunction: Dynamic (Signal length limited)
  • manualManual
  • semi-automaticSemi-Automatic
  • pnpSwitching output: PNP - transistor

Specifications

Supply voltage 24V DC
110V DC (optional)
Output signal approx. 300 ms (dynamic)
Optical feedback 16 LEDs alternating per side (max. 2 colors)
Mounting method adhesive mounting
Pane thickness Acrylic pane up to 4 mm
Glass pane up to 6 mm
Connection JST
Output PNP
Operating temperature -30°C...+80°C
(24V DC manual)
-30°C…+70°C
(24V DC Semi Aut.)
-25°C...+70°C
(110V DC)
Housing material Polycarbonate (PC)
Switch surface material Polycarbonate (PC)

Suitable Accessories

CHT-46-__pic

CHT-46-#

JST Cable 4-poles for: |CHT3 | CHT4 |
|CHT5 | CHT51 | CHT6 | CHT61 | CHT7 | CHT9 |

  • Different lengths are available
  • Cable made of flame-retardant material
  • 4-cores
  • JST 2.54 plug
