CHT1-6 (Stainless steel)

Description

Raised design against unintentional activation

  • Ø 40.0 mm total diameter
  • Ø 22.5 mm mounting hole
  • 8.9 mm height
  • Hygienic-conform housing(DIN EN 1672-1/2)


APPLICATION: INDUSTRIAL AUTOMATION | FOOD & BEVERAGE | MEDICAL TECHNOLOGY | BUILDING TECHNOLOGY

  • Knurled nut mounting
  • Extremely robust housing ring made from stainless steel
  • Ideal for pharmaceutical, medical and food industries
  • Customization: symbols

Downloads CHT1-6

csm_CAPTRON-thumb-set-configuration-manual_a84f8c207e
SENSORswitch Configuration CHT1 (Transistor output)

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-thumb-set-configuration-manual_a84f8c207e
SENSORswitch Configuration CHT1 (relay output)

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db
Certificate "EG-Type Examination RST"

+ Download DE
+ Download EN
+ Download PL

Product Images

CAPTRON-SENSORswitches-CHT1-6-hygienic

Technical Drawings

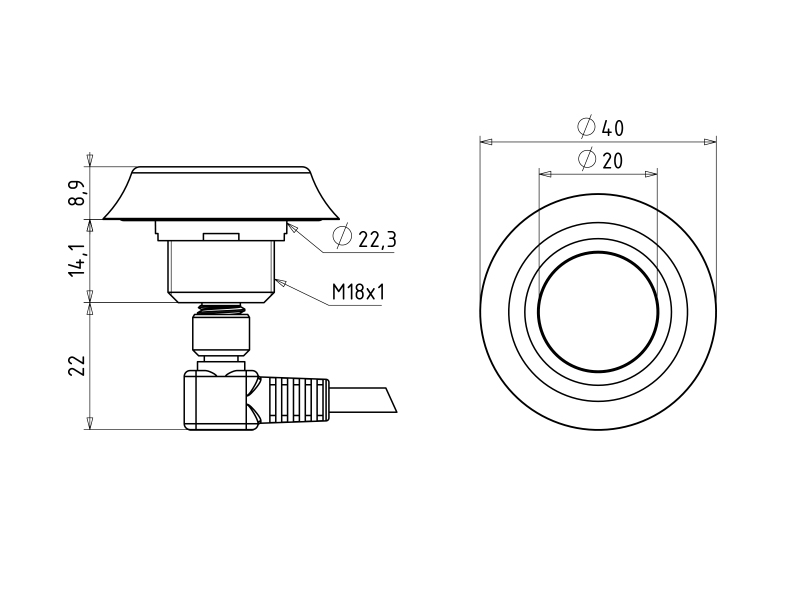

CAPTRON-drawing-CHT1-6

Housing colors

  • Edelstahl_01Housing stainless steel

Features

  • dynamicFunction: Dynamic (Signal length limited)
  • staticFunction: Static (permanent signal)
  • tffToggle Flip Flop
  • manualManual
  • semi-automaticSemi-Automatic
  • automaticAutomatic
  • pnpSwitching output: PNP - transistor
  • npnSwitching output: NPN - transistor
  • relSwitching output: potential-free relay output

Specifications

Supply voltage 10...30V DC
Output signal approx. 300 ms (dynamic)
Static
Optical feedback 2 LED colors
Connection JST
cable + M12
M8
terminal block
strands
Mounting method Knurled nut M18x1
Switch surface material Polycarbonate (PC)
Housing material stainless steel (V4A)
Output PNP
Relay (optional)
NPN-NO
