CSA5-2 (Standard)

Description

LED-Signal display through glass

  • Ø 55 mm displaysize
  • Illuminated text and pictograms can be displayed
  • Adhesive mounting
  • height inside 14 mm, outside 3.2 mm
  • Profile angle 90°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

  • 100 % water and oil-proof - IP69K
    Lamp is completely sealed in cast resin
  • Extensive service life more than 20' - 100.000 h
  • Illuminated text and pictograms can be displayed

Downloads CSA5-2

Service and Support

Request a quoteDownload centerTechnical support

Product Images

CAPTRON-LED-signalling-CSA5

Technical Drawings

CSA5-1_drawing

Application Images

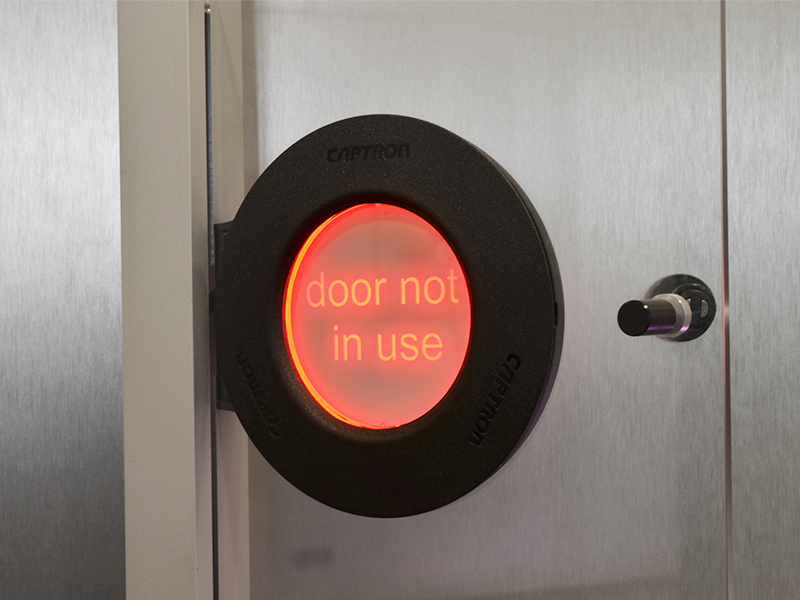

CAPTRON-LED-Signal-Unit-CSA5-Application-front-01
CAPTRON-LED-Signal-Unit-CSA5-Application-back-01

Housing colors

  • RAL3020-VerkehrsrotHousing traffic red (RAL 3020)
  • RAL1023-VerkehrsgelbHousing traffic yellow (RAL 1023)
  • RAL6024-VerkehrsgruenHousing traffic green (RAL 6024)
  • RAL5015-HimmelblauHousing sky blue (RAL 5015)
  • RAL9017-VerkehrsschwarzHousing traffic black (RAL 9017)
  • RAL7043-VerkehrsgrauBHousing traffic grey B (RAL 7043)

Specifications

Supply voltage 24V DC
Optical feedback LED red
Connection JST
Mounting method adhesive mounting
Housing material Polycarbonate (PC)

Suitable Accessories

CHT-46-__pic

CHT-46-#

JST Cable 4-poles for: |CHT3 | CHT4 |
|CHT5 | CHT51 | CHT6 | CHT61 | CHT7 | CHT9 |

  • Different lengths are available
  • Cable made of flame-retardant material
  • 4-cores
  • JST 2.54 plug
