CTL1-1#X (Flush)
Description
3-color TripleLED SIGNAL LAMP front panel mounting
- Ø 26.5 mm total diameter
- Adhesive mounting / screw mounting
- Ideal front plate thickness 3 mm (optional)
- Ø20 mm mounting hole (optional)
APPLICATION: FOOD & BEVERAGE | INDUSTRY AUTOMATION | BUILDING TECHNOLOGY
- LED colors
blue, white and red
red, yellow and green - Flush mounting
No raise at front panel
Mounting with CHT1 lock ring (optional)
Product Images
Technical Drawings

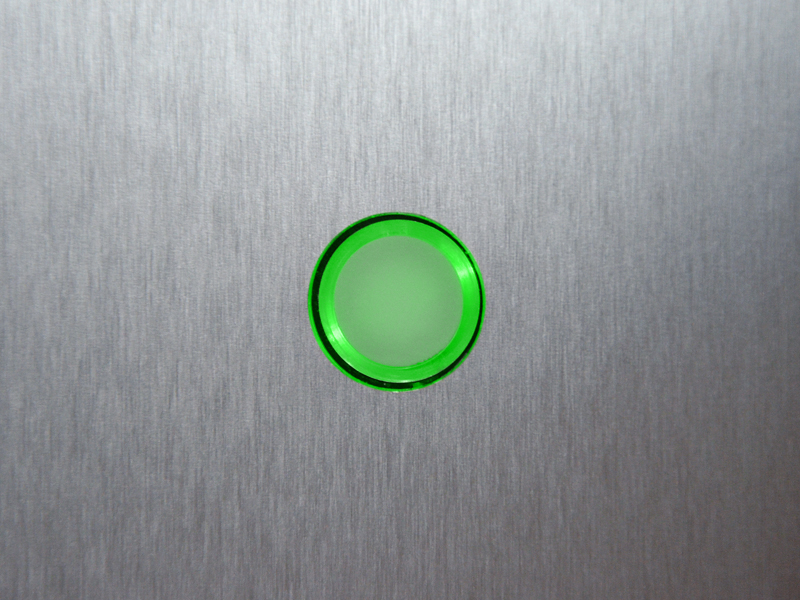

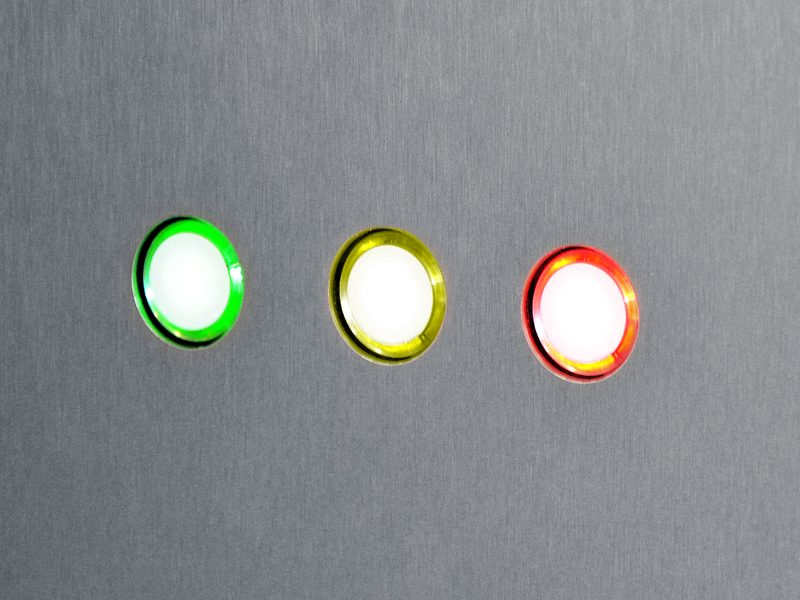

Application Images
Specifications
| Supply voltage |
24V DC |
| Current consumption |
Max. 20mA |
| Optical feedback |
3 LED colors |
| Mounting method |
screw mounting adhesive mounting |
| Connection |
M8 strands |
| Operating temperature |
d -20°C…+50°C |
| IP protection level |
Front IP69K Back side IP67 |
| IK level of protection |
IK08 |
| Housing material |
Polycarbonate (PC) |
Suitable Accessories
CHT1-Locking ring
Lockring for mounting of CHT1-1#X
- Lockring made of aluminium
- For panel mounting
APPLICATION: INDUSTRIAL AUTOMATION | BULDING TECHNOLOGY
Cable M8
M8 cable for sensor connection
- Connector straight or angled
- Different lengths are available
- Different numbers of cores are available
- Screw or snap-in mounting
APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
