Two-hand control safeCAP SC4

Description

The capacitive two-hand safety controls in the SC4 series allows heavy industrial automation machinery and systems to be operated safely and without pressure and meets the very highest safety requirements of Category 4 under PL e to DIN EN ISO 13849-1.

CAPTRON supplies the SC4 series in Basic, Protect and Complete sets. The additional safety elements such as the Protector or the control desk also provide protection from outside interference and satisfy all the requirements for two-hand safety controls under DIN EN 574.

Capacitive two-hand safety controls are specially designed for everyday, ergonomic long-term use and deliver extreme durability, reliability and robustness. The touch area has a diameter of 63 mm making it very large and easy to use. The user receives optical feedback through 8 red and 8 green LEDs.

CAPTRON can provide individual advice to enable you to choose the perfect product for the required specifications and applications. Contact us: CAPTRON service.

Downloads

csm_CAPTRON-Thumb-Two-hand-control-safeCAP_8410a2d1bc
Catalog "Two-hand control safeCAP"

Two-hand control safeCAP

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-Certificate-SC4-2006-42-EG_3b936be2d6
Certificate safeCAP SC4 "2006/42/EG"

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-Industrial-Automation-Brochure_341a5a63b4
Brochure "Industrial Automation"

+ Download DE
+ Download EN
Any questions?

We will be pleased to help you.

Product Certificates

Certificates, flyers and data sheets

Important properties

  • 100% water and oilproof
    Protection class IP69K, fully sealed in casting resin
  • Extremely long service life
    Over 100 million switching cycles
  • Impact-resistant – robust
    Protection rating IK08, cannot be destroyed by lighter flames and blows to the switch surface
  • Foreign object check
    Recognises obstructions
  • Contamination control
    Recognises contamination
  • Touch sensor
    Maximum ease of use, effortless, no strain on wrists
  • Safety certification
    According to PL e (DIN EN ISO 13849-1)

Products

csm_CAPTRON-two-hand-safety-control-safeCAP-SC4-SCA_aa5b5c3972

SCA4 (Switch A)

safeCAP switch A seperate

  • Ø 63 mm switch surface
  • Mounting Ø 45 - 59 mm
  • Compatibe with mit MCR-225 safety relais
  • Type III C certified according to DIN EN 574



APPLICATION: PUNCHING | PRESSES

csm_CAPTRON-two-hand-safety-control-safeCAP-SC4-SCA_aa5b5c3972

SCB4 (Switch B)

safeCAP switch B seperate

  • Ø 63 mm switch surface
  • Mounting Ø 45 - 59 mm
  • Compatibe with mit MCR-225 safety relais
  • Type III C certified according to DIN EN 574



APPLICATION: PUNCHING | PRESSES

csm_CAPTRON-two-hand-safety-control-safeCAP-SC4-MCR-225_dc981f2cda

MCR-225 (Amplifiers)

Relais for SC4

  • Inputs for SCA4 + SCB4
  • Output: 2 makers and 1 breaker
  • Monitoring of external contactors for contact multiplication and reinforcement
    via feedback loop Y1 - Y2
  • Over-current and short-circuit proof

APPLICATION: PUNCHING | PRESSES

csm_CAPTRON-Two-hand-safety-control-safeCAP-SC4-Set-Basic_944dd4488f

SC4 SET Basic

safeCAP switch A and B and safety relais

  • Two switches (SCA4, SCB4)
  • Safety relais MCR-22
  • Two connector cables (LKW-SCA, LKW-SCB)


APPLICATION: PUNCHING | PRESSES

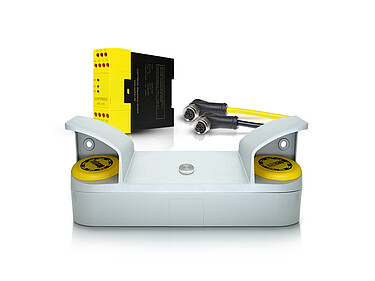

csm_CAPTRON-Two-hand-safety-control-safeCAP-SC4-Set-Complete_5224f1eb8b

SC4 SET Complete

SC4 Set with plastic control panel

  • Two switches (SCA4, SCB4)
  • Safety relais MCR-225
  • Two connector cables (LKW-SCA, LKW-SCB)
  • Control panel made of plastic (Optional: aluminum

APPLICATION: PUNCHING | PRESSES

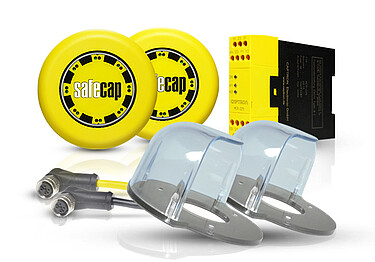

csm_CAPTRON-Two-hand-safety-control-safeCAP-SC4-Set-Protect_346a133da1

SC4 SET Protect

SC4 Set with plastic protectors

  • Two switches (SCA4, SCB4)
  • Safety relais MCR-225
  • Two connection cables (LKW-SCA, LKW-SCB)
  • two protectors SCP-4

 APPLICATION: STAPING | PRESSING
