Two-hand control safeCAP SC3x (in accordance with EN ISO 13849-1, EN ISO 13851)

The newest generation of capacitive two-hand controls

The SC3x series is the newest generation of the proven CAPTRON safeCAP two-hand controls and the direct successor to the SC4 series. It has been specially developed for applications where maximum safety, ergonomic operation and long-term reliability are required - such as punching machines, presses and other machines with a high risk of injury.

Force-free operation - noticeable relief for employees

Thanks to capacitive sensor technology, no pressure is required - actuation is force-free. This reduces strain on the wrists and noticeably improves ergonomics. It can also be operated reliably when wearing work gloves.

Extremely durable and robust - no failures, no replacement necessary

The buttons are fully encapsulated (IP68) and therefore protected against water, oil, dust and impact. The sensor technology is wear-free and designed for several hundred million switching cycles - ideal for continuous industrial use. Maintenance effort? Practically zero.

Safe and certified for Type III C applications

• Single-channel (NO) and dual-channel (NO/NC) variants available
• 5-pin and 8-pin variant
• Compatible with all common safety PLCs and switching devices
• Certified according to EN ISO 13849-1 (Cat. 4, PLe) & EN ISO 13851
• Visual LED feedback: green (ready), yellow (actuated)

Flexible mounting - three designs for your application

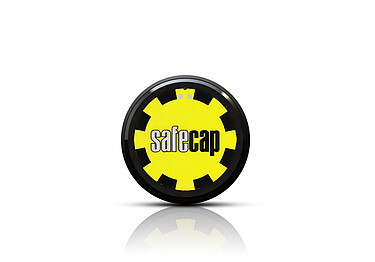

• SC30: Ø 22.5 mm installation opening - for quick installation in standard housings
• SC30-Q: Ø 50.5 mm mounting hole – quick installation with a low-profile design (height: 6 mm)
• SC31: Ø 50-58 mm with 3-point mounting - installation height 7 millimeters


Expandable with a wide range of accessories
Whether protector cover or table mounting panel: The SC3x series is modularly expandable - ideal for fully standard-compliant safety solutions.
