CHT1-5 (Protector)

Description

Raised housing ring against unintentional activation

  • Ø 28.5 mm total diameter
  • Knurled nut mounting
  • Ø 22.5 mm mounting hole
  • 8.5 mm height

APPLICATION: INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

  • Customization
    Symbols and housing colors
  • Raised housing ring
    Prevents unintentional activation

Downloads CHT1-5

csm_CAPTRON-thumb-set-configuration-manual_a84f8c207e
SENSORswitch Configuration CHT1 (Transistor output)

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-thumb-set-configuration-manual_a84f8c207e
SENSORswitch Configuration CHT1 (relay output)

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-SENSORswitch-CHT1-Instruction_2a4e8fd9eb
Instruction Manual CHT1 with Relay D-BA

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-Thumb-SENSORswitch-CHT1-Instruction_2a4e8fd9eb
Instruction SENSORswitches "CHT1" with Relay B-BA

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db
Certificate "EG-Type Examination RST"

+ Download DE
+ Download EN
+ Download PL

Product Images

CAPTRON-SENSORswitches-CHT1-5-

Technical Drawings

CAPTRON-drawing-CHT1-5-

Application Images

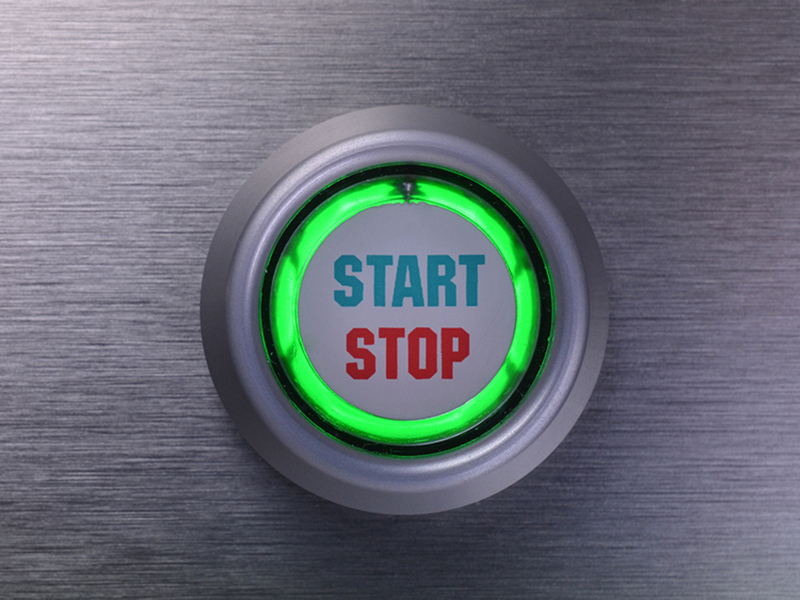

CAPTRON-SENSORswitches-CHT1-5-Application-001
CAPTRON-SENSORswitches-CHT1-5-Application-002
CAPTRON-SENSORswitches-CHT1-5-Application-003

Housing colors

  • Alu-NHousing anodized aluminium
  • Alu-schwarzHousing black anodized aluminium

Features

  • dynamicFunction: Dynamic (Signal length limited)
  • staticFunction: Static (permanent signal)
  • tffToggle Flip Flop
  • manualManual
  • semi-automaticSemi-Automatic
  • automaticAutomatic
  • pnpSwitching output: PNP - transistor
  • npnSwitching output: NPN - transistor
  • relSwitching output: potential-free relay output

Specifications

Supply voltage 10...30V DC
Output signal approx. 300 ms (dynamic)
Static
Optical feedback 2 x LED rings
Mounting method Knurled nut M18x1
Connection M8
cable + M12
JST
terminal block
strands
Output PNP
NPN-NO
Relay (optional)
Operating temperature -30°C…+70°C
Housing material Aluminium (AL)
Switch surface material Polycarbonate (PC)
