CHT1-T#8 (Snap-in)

Description

Hygiene conform, snap-in mounting

  • Ø 40 mm total diameter
  • Snap-In mounting
  • Front plate thickness min. 1.5 mm
  • Ø 22.5 mm mounting hole
  • 10 mm height

APPLICATION: FOOD & BEVERAGE | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

  • Hygiene conform according to DIN EN 1672-1/2
    Ideal for swich housings, panels, machines
  • Quick snap-in mounting
    Easily snaps in to drill holes without use of tools
  • Customization
    Symbols
  • TSI-PRM conform
    Pictograms available

Downloads CHT1-T#8

csm_CAPTRON-thumb-set-configuration-manual_a84f8c207e
SENSORswitch Configuration CHT1 (Transistor output)

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-thumb-set-configuration-manual_a84f8c207e
SENSORswitch Configuration CHT1 (relay output)

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db
Certificate "EG-Type Examination RST"

+ Download DE
+ Download EN
+ Download PL

Product Images

CAPTRON-SENSORswitches-CHT1-T_8-Snap-In

Technical Drawings

CAPTRON-drawing-CHT1-T_8-Snap-In

Application Images

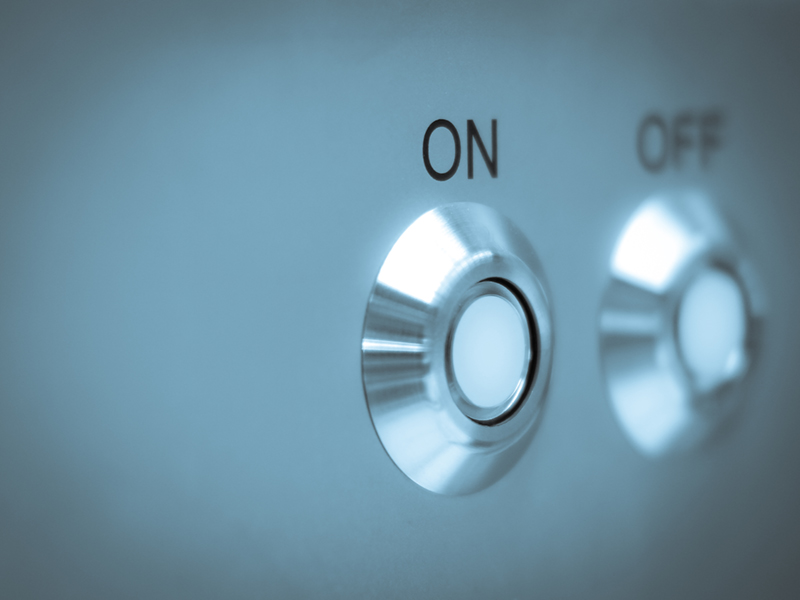

CAPTRON-SENSORswitches-CHT1_8-006
CAPTRON-SENSORswitches-CHT1-T-Application-001
CAPTRON-SENSORswitches-CHT1-T-Application-002
CAPTRON-SENSORswitches-CHT1_8-005

Housing colors

  • Edelstahl_01Housing stainless steel

Features

  • dynamicFunction: Dynamic (Signal length limited)
  • staticFunction: Static (permanent signal)
  • tffToggle Flip Flop
  • manualManual
  • semi-automaticSemi-Automatic
  • automaticAutomatic
  • npnSwitching output: NPN - transistor
  • pnpSwitching output: PNP - transistor
  • relSwitching output: potential-free relay output

Specifications

Supply voltage 10...30V DC
Output signal approx. 300 ms (dynamic)
Static
Optical feedback 2 x LED rings
Mounting method clip-on mounting
Connection M8
cable + M12
JST
terminal block
strands
Output Relay (optional)
NPN-NO
PNP
Operating temperature -30°C…+70°C
Housing material stainless steel (V4A)
Switch surface material Polycarbonate (PC)

Suitable Accessories

CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M8

Cable M8

M8 cable for sensor connection

  • Connector straight or angled
  • Different lengths are available
  • Different numbers of cores are available
  • Screw or snap-in mounting

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M12

Cable M12

M12 cable for sensor connection

  • Connector straight or angled
  • Different lengths are available
  • Differnt numbers of cores are available
  • Screw mounting

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

CAPTRON-Accessoires-Relais-CRM1-RW

CRM1-RW

Relays 110V with NO/NC output

  • PNP input
  • NO and NC output
  • Switching voltage 110V
  • Supply voltage 24V DC

APPLICATION: INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY
