CHT6-2/#° (Profile Angle)

Description

Single-sided operation through single glass

  • Ø 63 mm swich surface
  • Adhesive mounting
  • 14 mm height inside
  • 3.2 mm height outside
  • Profile angle 84°, 80°, 60°

APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

  • Customization
    Symbols and housing colors
  • TSI-PRM conform
    Pictograms and braille available
    Optical feedback through LEDs
    No operation force needed
  • 100 % water and oil-proof - IP69K
    Sensor is completely sealed in cast resin

Downloads CHT6-2/#°

csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb
Catalog "Capacitive SENSORswitches"

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
+ Download
csm_thumb_CAPTRON-whitepaper-rail-transit-technology_e7573451de
White paper "Rail Transit Technology"

SENSORtaster

+ Download EN
csm_CAPTRON-Thumb-ECE-R118_2441f57ac9
Certificate "ECE R 118 statement"

+ Download DE
+ Download EN
+ Download
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d
Certificate SENSORswitches CHT6 "EN 45545"

+ Download DE
+ Download EN
+ Download

Product Images

CAPTRON-SENSORswitches-CHT6-2-Standard

Technical Drawings

CAPTRON-Drawings-SENSORswitches-CHT6-2
CAPTRON-Drawings-SENSORswitches-CHT6-60angle
CAPTRON-Drawings-SENSORswitches-CHT6-80angle

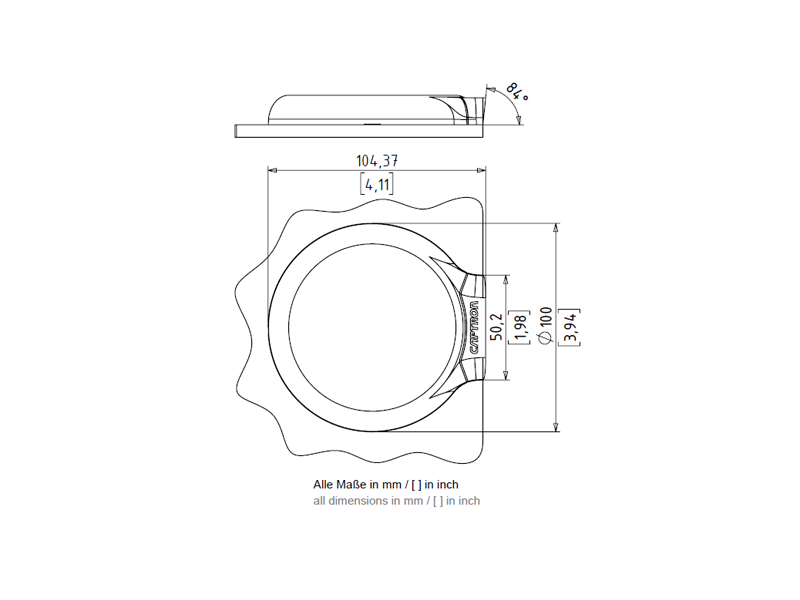

CAPTRON-Drawings-SENSORswitches-CHT6-84angle

Application Images

CAPTRON-SENSORswitches-CHT61-1-Application-001

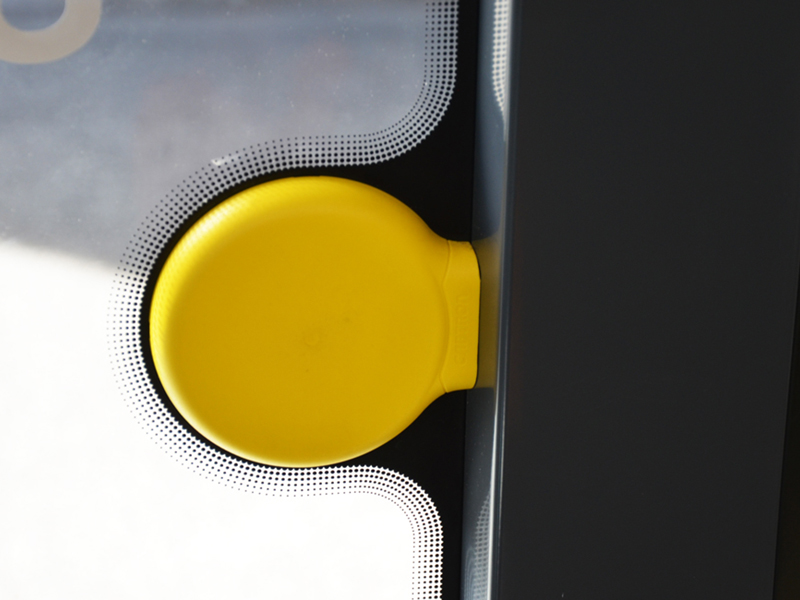

CAPTRON-SENSORswitches-CHT61-1-Application-002
CAPTRON-SENSORswitches-CHT6-1-Application-003

Housing colors

  • RAL3020-VerkehrsrotHousing traffic red (RAL 3020)
  • RAL1023-VerkehrsgelbHousing traffic yellow (RAL 1023)
  • RAL6024-VerkehrsgruenHousing traffic green (RAL 6024)
  • RAL5015-HimmelblauHousing sky blue (RAL 5015)
  • RAL9017-VerkehrsschwarzHousing traffic black (RAL 9017)
  • RAL7042-Verkehrsgrau-AHousing traffic grey A (RAL 7042)

Features

  • dynamicFunction: Dynamic (Signal length limited)
  • semi-automaticSemi-Automatic
  • pnpSwitching output: PNP - transistor

Specifications

Supply voltage 24V DC
12V DC (optional)
Output signal approx. 300 ms (dynamic)
Optical feedback 16 LEDs alternating (max. 2 colors)
Mounting method adhesive mounting
Pane thickness Acrylic pane up to 4 mm
Glass pane up to 6 mm
Connection JST
Output PNP
Operating temperature -30°C...+80°C
(24V DC)
-30°C…+70°C
(12V DC)
Housing material Polycarbonate (PC)
Switch surface material Polycarbonate (PC)

Suitable Accessories

CHT-46-__pic

CHT-46-#

JST Cable 4-poles for: |CHT3 | CHT4 |
|CHT5 | CHT51 | CHT6 | CHT61 | CHT7 | CHT9 |

  • Different lengths are available
  • Cable made of flame-retardant material
  • 4-cores
  • JST 2.54 plug

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

CAPTRON-Accessoires-Relais-CRM1-RW

CRM1-RW

Relays 110V with NO/NC output

  • PNP input
  • NO and NC output
  • Switching voltage 110V
  • Supply voltage 24V DC

APPLICATION: INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY
