CMB-AP-4229-01 (mounting bracket)

Description

Mounting bracket for CANEO series10 Touch and signal light

Suitable for CANEO series10 Touch and signal light with a diameter of 22.5 mm
90° angle
Material: stainless steel

APPLICATION: INDUSTRIAL AUTOMATION | LOGISTICS

Downloads CMB-AP-4229-01

STEP: CAP004299-01-A

csm_CMB-AP-4229-01-DS-V1.1_48106e8665

Datasheet CMB-AP-4229-01-V1.1

Service and Support

Request a quote

Download center

Technical support

Product Images

[Translate to Englisch:]

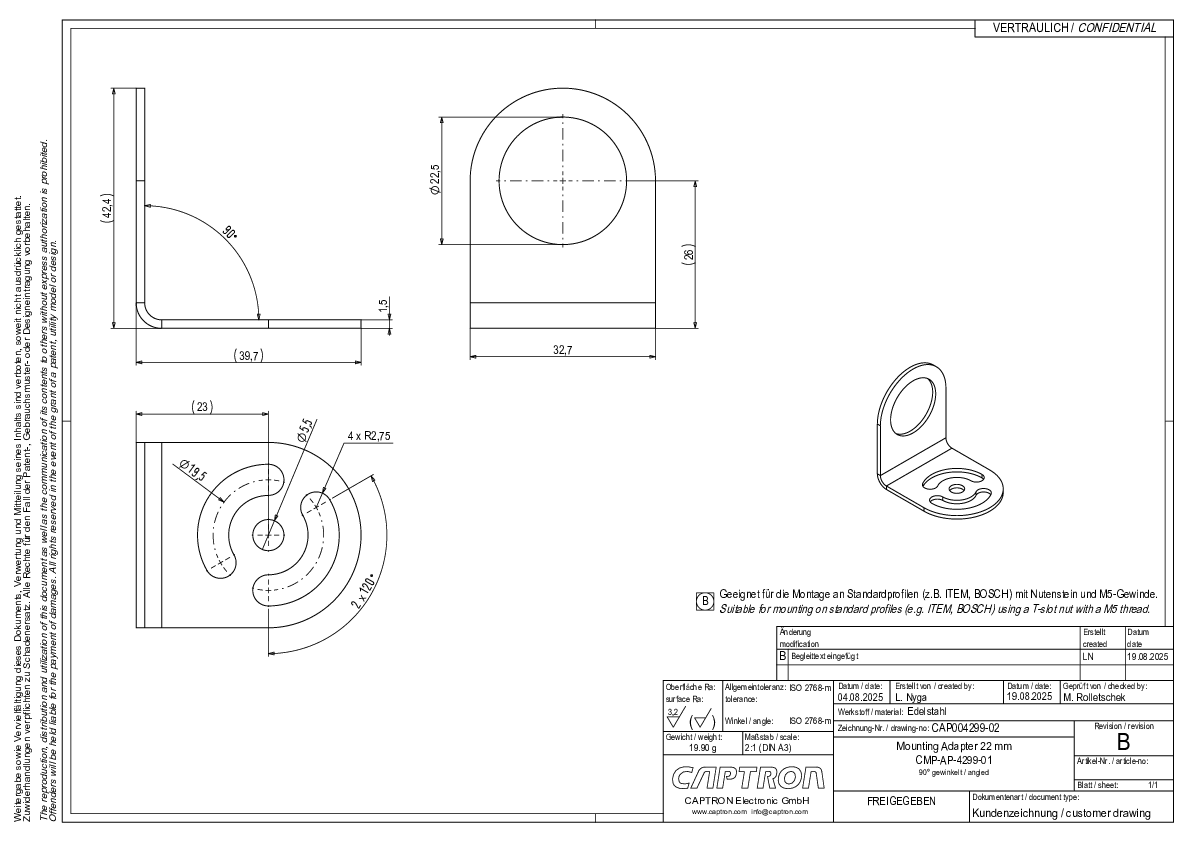

Technical Drawings

csm_CMB-AP-4229-01-DS-V1.1_4d84acef21

Housing colors

Housing stainless steel

Specifications

Housing material

stainless steel (V4A)
