HWT2-W (Wall mounting)

Description

Operation without force

  • 16 cm² switch surface
  • Wall mounting


APPLICATION:
TRAFFIC & TRANSPORT

  • Customization
    Symbols and housing colors
  • TSI-PRM conform
    Piktograms and braille available
    No operation force needed
  • Optical feedback through LEDs
  • Acoustical feedback available

Downloads HWT2-W

csm_CAPTRON-Thumb-SENSORswitches-Catalog_b1861a465c
Catalog "Capacitive SENSORswitches"

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
csm_thumb_CAPTRON-whitepaper-rail-transit-technology_8934b730d6
White paper "Rail Transit Technology"

SENSORtaster

+ Download EN
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_3cbdb5f92b
Certificate SENSORswitches HWT2 "EN 45545"

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_72c862b120
TSI-PRM Technical file "SENSORswitches"

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-ECE-R118_65c19809a2
Certificate "ECE R 118 statement"

+ Download DE
+ Download EN
Any questions?

We will be pleased to help you.

Product Certificates

Certificates, flyers and data sheets

Product Images

Technical Drawings

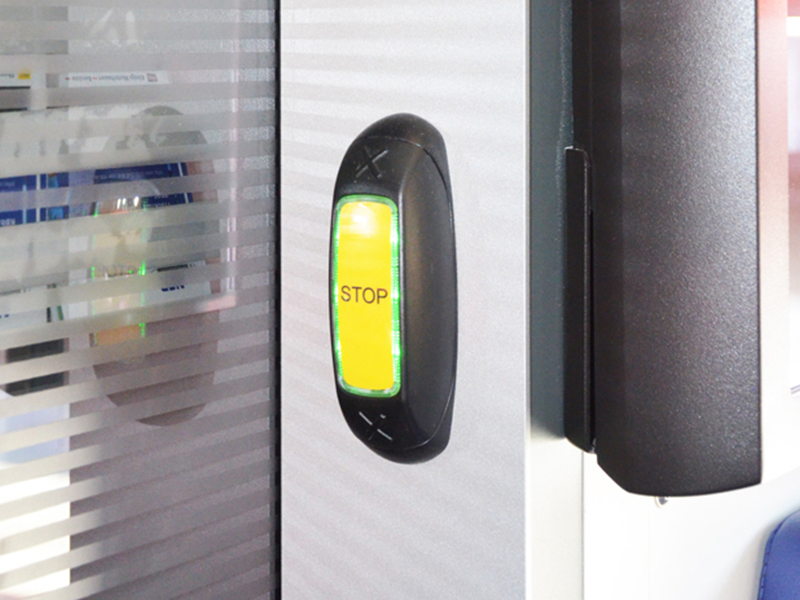

Application Images

Housing colors

  • RAL3020-Verkehrsrot Housing traffic red (RAL 3020)
  • RAL1023-Verkehrsgelb Housing traffic yellow (RAL 1023)
  • RAL6024-Verkehrsgruen Housing traffic green (RAL 6024)
  • RAL5017-Verkehrsblau Housing traffic blue (RAL 5017)
  • RAL9017-Verkehrsschwarz Housing traffic black (RAL 9017)
  • RAL7043-VerkehrsgrauB Housing traffic grey B (RAL 7043)

Features

  • acoustic Acoustic feedback: signal tone
  • dynamic Function: Dynamic (Signal length limited)
  • automatic Automatic
  • manual Manual
  • pnp Switching output: PNP - transistor

Specifications

Supply voltage 10…32V DC
Optical feedback 12 LEDs alternating (max. 2 colors)
Acustic feedback Signal tone (optional)
Mounting method screw mounting
Connection JST 2.54, 2+3-pole (manual)
JST 2.54, 3-pole (automatic)
Output signal Dynamic
Output PNP
Operating temperature -30°C...+80°C
Housing material PC-ABS-Blend
Swich surface material Polycarbonate (PC)
