HWT3 (LCD Module)

Description

Stop request button with graphical display

LCD module with 64x72 pixels
Can show up to four moving images / sequences
Acoustic feedback
No operation force needed

APPLICATION: TRAFFIC & TRANSPORT

Customization
Housing colors, symbols and sequences
TSI-PRM conform
Pictograms and braille available
No operation force needed
Optical feedback through LEDs and display

Downloads HWT3

csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb

SENSORswitch product catalog

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
+ Download PL

csm_CAPTRON-thumb-set-configuration-manual_bd65855eeb

SENSORswitch Configuration help

+ Download DE
+ Download EN

csm_thumb-CAPTRON-certificate-ece-r118_62db300f72

Certificate ECE-R118

+ Download DE
+ Download EN
+ Download PL

csm_EG-Certificate_TSI-PRM_CHTseries_2021_7aea30bec9

Certificate TSI-PRM (Technical file)

+ Download DE
+ Download EN
+ Download PL

Service and Support

Request a quote

Download center

Technical support

Product Images

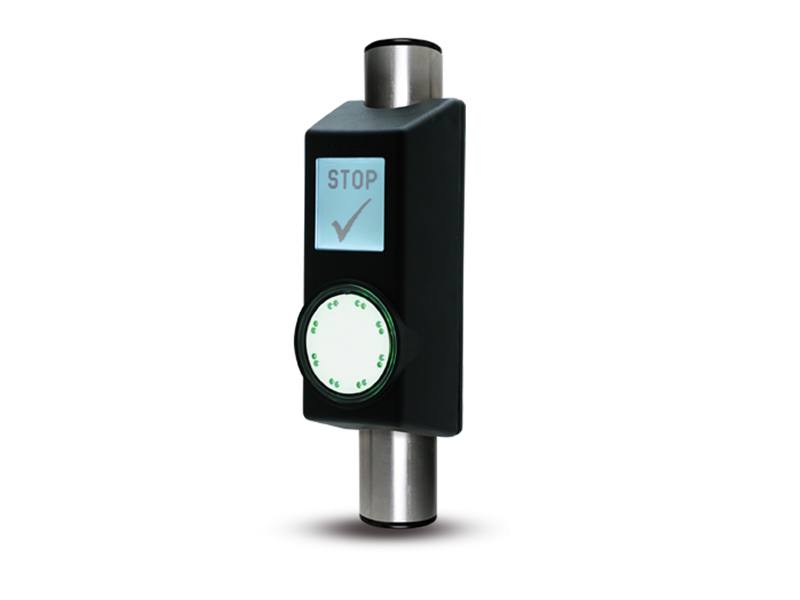

CAPTRON-SENSORswitches-HWT3-Standard

Technical Drawings

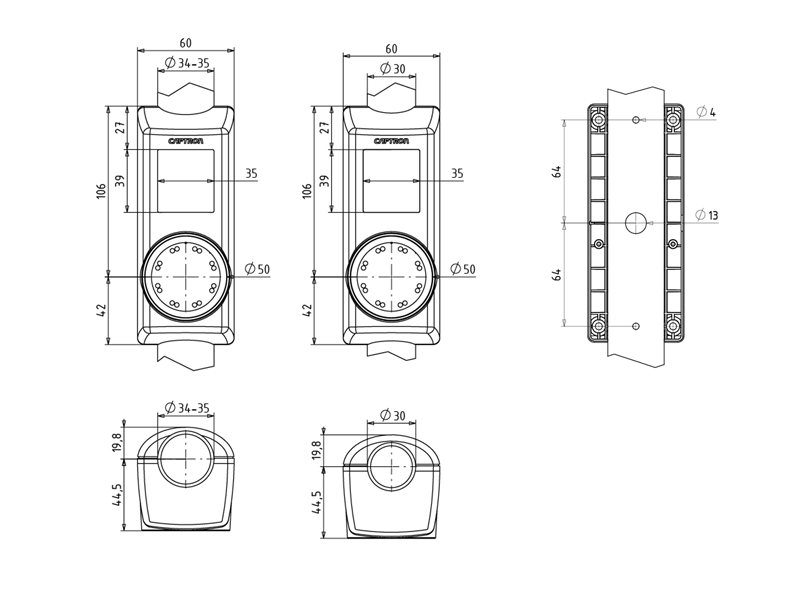

CAPTRON-SENSORswitches-drawingHWT3-Standard

Application Images

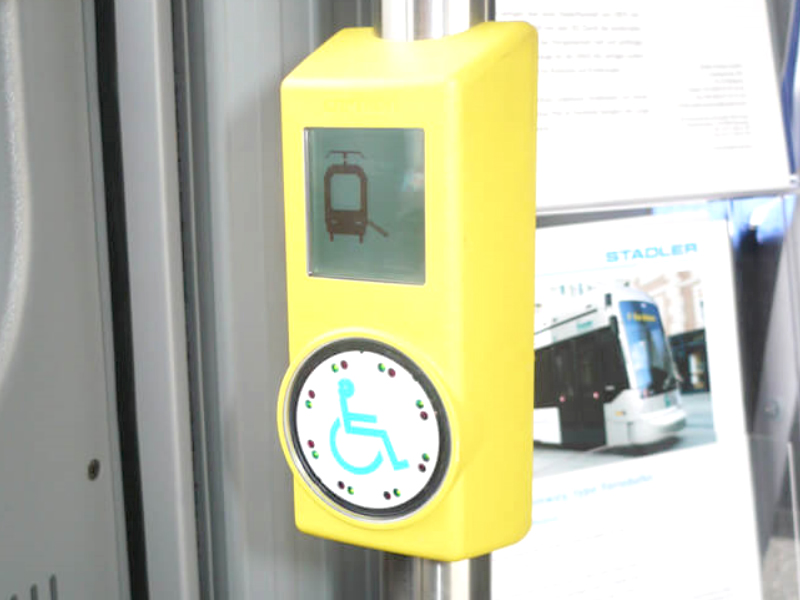

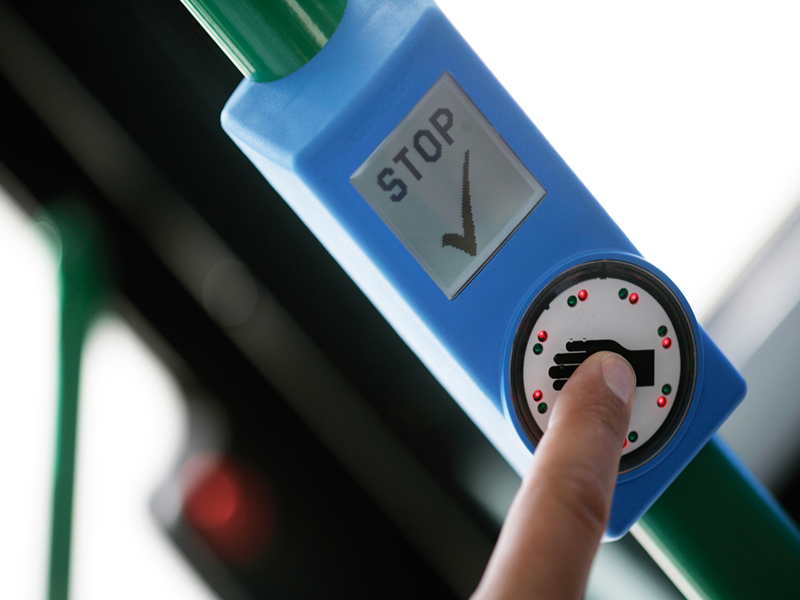

CAPTRON-SENSORswitches-HWT3-Application-001

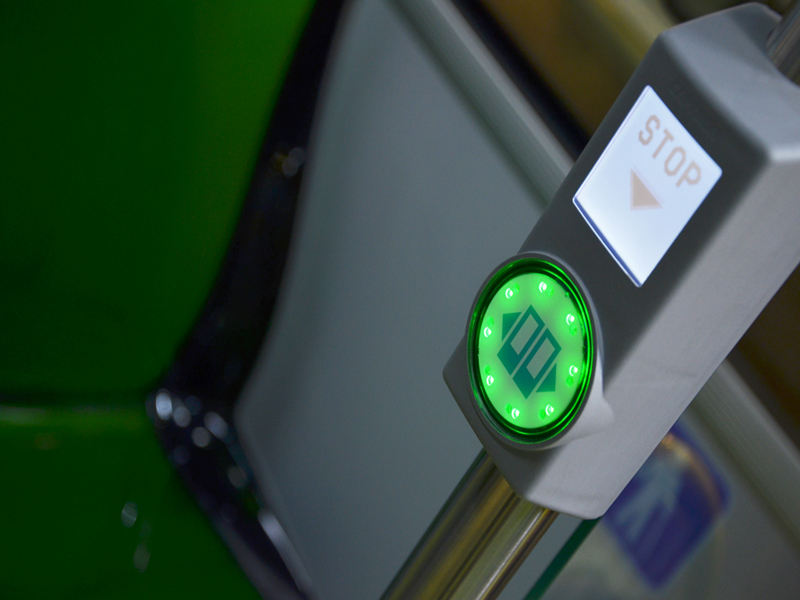

CAPTRON-SENSORswitches-HWT3-Application-002

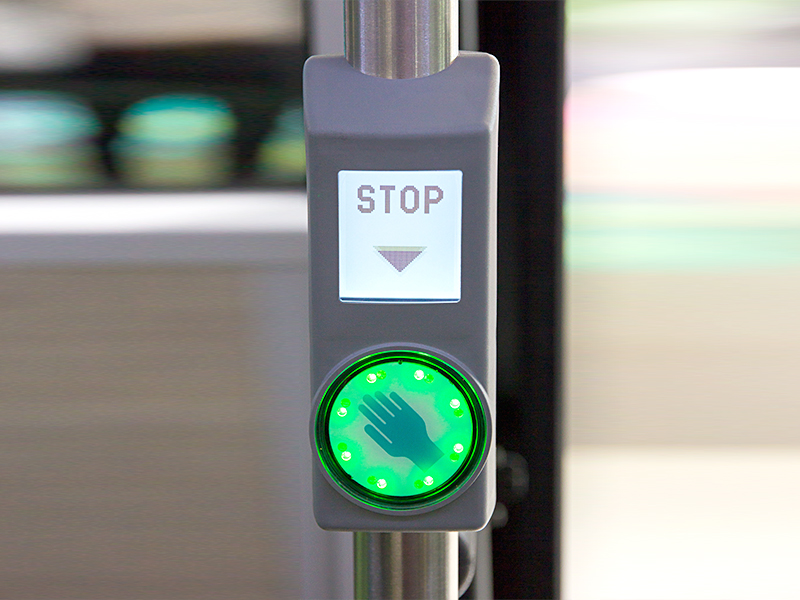

CAPTRON-SENSORswitches-HWT3-Application-003

CAPTRON-SENSORswitches-HWT3-Application-004

Housing colors

Housing traffic red (RAL 3020)
Housing traffic yellow (RAL 1023)
Housing traffic green (RAL 6024)
Housing traffic blue (RAL 5017)
Housing traffic black (RAL 9017)
Housing traffic grey B (RAL 7043)

Features

Acoustic feedback: signal tone
Function: Dynamic (Signal length limited)
Switching output: PNP - transistor

Specifications

Supply voltage	24V DC
Output signal	Dynamic
Optical feedback	16 LEDs alternating (max. 2 colors)
Mounting method	screw mounting
Connection	JST 2.54, 3-pole (automatic)
Output	PNP
Operating temperature	-30°C...+80°C
Switch surface material	Polycarbonate (PC)
Housing material	Polyamide (PA)

Suitable Accessories

HWT-56-__pic

HWT-56-#

JST cable 2-poles + 3-poles for HWT2 and HWT3

Different lengths are available
Cable made of flame-retardant material
5-cores
JST 2.54 plug

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

CAPTRON-Accessoires-Relais-CRM1-RW

CRM1-RW

Relay 110V with NO/NC output

PNP input
NO and NC output
Switching voltage 110V
Supply voltage 24V DC

APPLICATION: INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY
