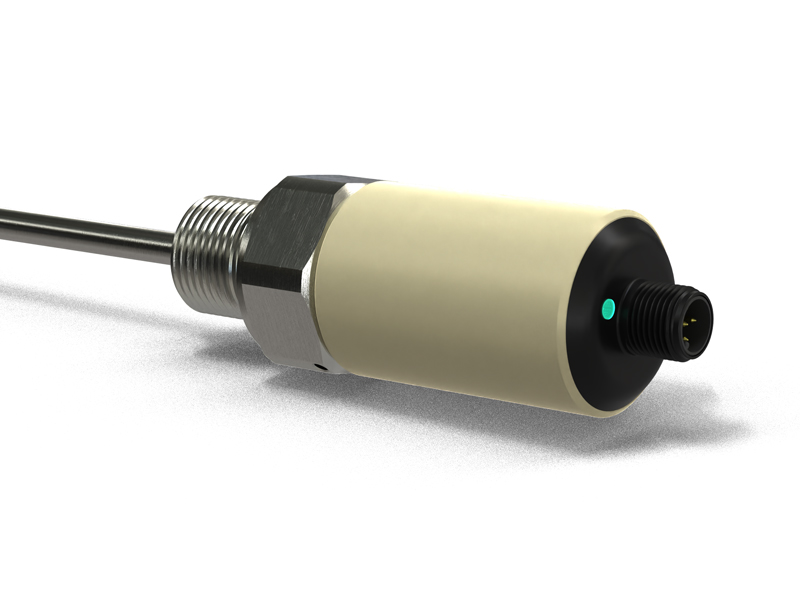

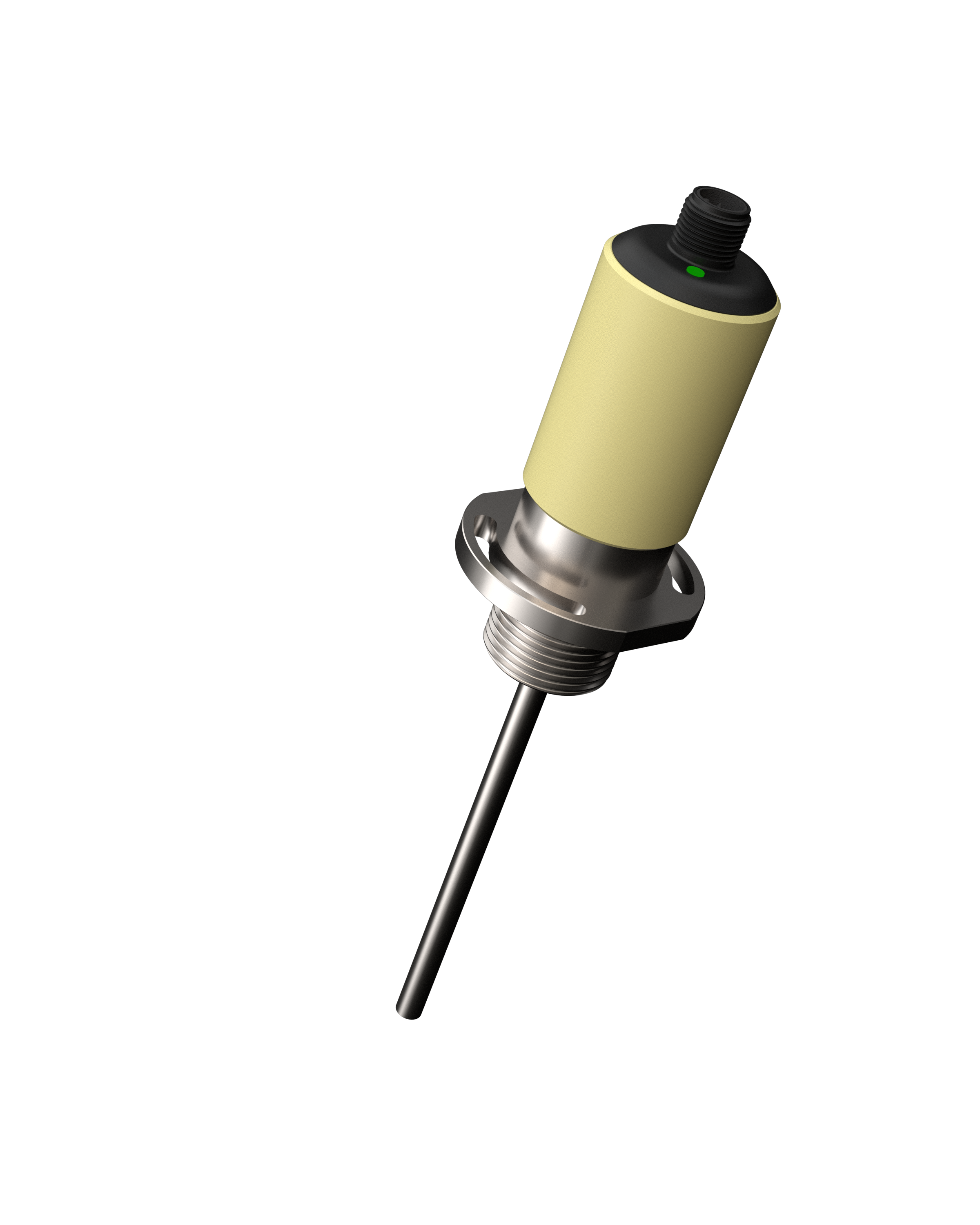

ORCA Hot

Description

Precise level measurement of hot media in confined spaces thanks to a compact probe head

Precise level measurement for non-conductive materials at high process temperatures
Measurement accuracy even with variable medium temperatures
V4A probe rod and process connection
PEEK temperature insulator

APPLICATION: PLANT ENGINEERING | DISPENSING

Space-saving design
Requires minimal space thanks to the low-profile probe head and slim design
Quick & easy installation
Fast installation and initial setup
Reliable and precise
Measurement results are highly precise and reliable, even with complex tank geometries
Industry 4.0 ready
Can be configured remotely via a graphical user interface using IO-Link
Time- and cost-saving
Very fast installation with minimal downtime and exceptionally long service life thanks to wear-free electronics

Connection	M12
Supply voltage	24V DC (19,2...28,8 V)
Current consumption	Max. 140 mA
Fluid temperature	0°C…+230°C
Switching point position	Adjustable
Analog output	4...20 mA / 0...10 V
Switching output	2x
Measuring accuracy	+/- 2% of the upper limit of the effective range +/- 1% of the upper limit of the effective range
Temperature drift	<0,1%/°C
IP protection level	IP67
Compressive strength	10 bar
Communication interface	IO-Link V1.1
Measuring principle	Capacitive
Process connection	V4A
Probe material	V4A
Dielectric constant medium	>1,8 (dielectric constant Er)

M12 cable for sensor connection
