CHT-46-# (4-pole)
Description
JST Cable 4-poles for: |CHT3 | CHT4 |
|CHT5 | CHT51 | CHT6 | CHT61 | CHT7 | CHT9 |
- Different lengths are available
- Cable made of flame-retardant material
- 4-cores
- JST 2.54 plug
APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
Downloads CHT-46-#
Service and Support
Product Images

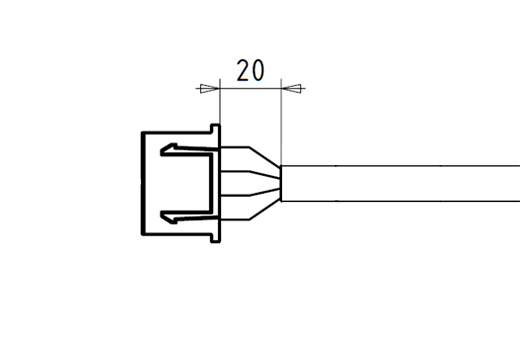

Technical Drawings
Housing colors
Black
Specifications
| Connection |
JST 2.54, 4-pole |
| Wire count |
4-pole |
| Length |
2m 3 m 5m |
| Operating temperature |
-25°C…+80°C (fixed) -40°C...+80°C (moved) |
Suitable Accessories
CHT3-1/-2
For screw mounting
- Ø 88 mm total diameter
- A- / V-mounting
- Ø 50-58 mm mounting hole
- 7 mm height
APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
CHT3-F
For front plate mounting
- Ø 50 mm total diameter
- Front plate mounting with locking ring
- Ø 48-48.5 mm mounting hole
- 3.3 mm heigt
APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION
CHT3-4
For 22.5 mm mounting holes
- Ø 60 mm total diameter
- M18x1 knurled nut mounting
- Ø 22.5 mm mounting hole
- 25 mm height
APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION
CHT3-5
For 22.5 mm mounting holes with protetive collar
- Ø 60 mm total diameter
- M18x1 knurled nut mounting
- Ø 22.5 mm mounting hole
- 55 mm height
APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION
CHT4-0
Suitable for mounting in robust metal housings (aluminun anodized)
- Ø 63 mm total diameter
- 9,7 mm sensor element height
APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION | TRAFFIC & TRANSPORT
CHT4-2
For screw mounting
- Ø 100 mm total diameter
- V-mounting
- Ø 27-60 mm mounting hole
- 10 mm height
APPLICATION: BUILDING TECHNOLOGY | TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
CHT5-2
Two-sided operation through single glass
- Ø 63 mm swich surface
- Adhesive mounting
- 14 mm height inside
- 3.2 mm height outside
- Profile angle 90°, 84°, 80°, 60°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT5-2/#°
Two-sided operation through single glass
- Ø 63 mm swich surface
- Adhesive mounting
- 14 mm height inside
- 3.2 mm height outside
- Profile angle 84°, 80°, 60°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT51-2
Two-sided operation through double glass
- Ø 63 mm swich surface
- Adhesive mounting
- 14 mm height inside
- 3.2 mm height outside
- Profile angle 90°, 84°, 80°, 60°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT51-2/#°
Two-sided operation through double glass
- Ø 63 mm swich surface
- Adhesive mounting
- 14 mm height inside
- 3.2 mm height outside
- Profile angle 84°, 80°, 60°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT6-2
Single-sided operation through single glass
- Ø 63 mm swich surface
- Adhesive mounting
- 14 mm height inside
- 3.2 mm height outside
- Profile angle 90°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT6-2/#°
Single-sided operation through single glass
- Ø 63 mm swich surface
- Adhesive mounting
- 14 mm height inside
- 3.2 mm height outside
- Profile angle 84°, 80°, 60°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT61-2
Single-sided operation through double glass
- Ø 63 mm swich surface
- Adhesive mounting
- 14 mm height inside
- 3.2 mm height outside
- Profile angle 90°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT61-2/#°
Single-sided operation through double glass
- Ø 63 mm swich surface
- Adhesive mounting
- 14 mm height inside
- 3.2 mm height outside
- Profile angle 84°, 80°, 60°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT7-2
Single-sided operation inside
Ideal for printed glass surfaces or wall mounting
- Ø 63 mm switch surface
- Adhesive mounting
- 14 mm height inside
- Profile angle 90°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT7-2/#°
Single-sided operation inside
Ideal for printed glass surfaces or wall mounting
- Ø 63 mm switch surface
- Adhesive mounting
- 14 mm height inside
- Profile angle 84°, 80°, 60°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT7-2/PL
Single-sided operation inside
Ideal for transparent glass surfaces
- Ø 63 mm switch surface
- Adhesive mounting
- 13 mm height inside
- Profile angle 90°, 84°, 80°, 60°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT74-2
Single-sided operation inside
Ideal for printed glass surfaces or wall mounting
- Ø 63 mm switch surface
- Adhesive mounting
- 12 mm height
- Profile angle 90°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
CHT9-1
Ideal for mounting on sheet metal
- Ø 100 mm total diameter
- Adhesive mounting
- 69-72 mm mounting hole
- 3 mm hight
APPLICATION: BUILDING TECHNOLOGY | TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
CHT9-G
Ideal for pharmaceutical and medical areas
- Ø 100 mm total diameter
- Adhesive mounting
- 79-80 mm mounting hole
- 5 mm height
APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION
CHT9-Y
Ideal for plant automation
- Ø 63 mm swich surface
- Robust die-cast aluminium housing
- For high design requirements
- Optional with M12 connector available
- 56,3 mm height
APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION
CHT9-P
Ideal for dark tinted glass
- Ø 100 mm total diameter
- Adhesive mounting
- 69-72 mm mounting hole
- 3 mm height
APPLICATION: BUILDING TECHNOLOGY | TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
