Two-hand control safeCAP

Safe operation of machines and systems.

CAPTRON, pioneer of the first capacitive two-hand control system, ensure the highest safety category according to (Cat. 4) and PL e (DIN EN ISO 13849-1). The capacitive "safeCAP" two-hand control allows heavy machinery and systems in automated production plants, such as presses and punches, to be controlled safely and without pressure.

To start the machine the user simultaneously presses two capacitive buttons which are connected to a safety relay. Incorrect or inattentive control using just one hand or with another part of the body is detected by the system and the machine is not started.

CAPTRON supplies the safeCAP two-hand control with additional safety elements such as the Protector or the control desk for tabletop installation. These combinations enhance protection and are certified to DIN EN 13851. The dynamically switching SENSORswitches detect interference factors such as dirt, dust or foreign bodies. The switches can be actuated using disposable or work gloves, however.

The fully electronic design of the SENSORswitches especially designed full every day fatigue-free continuous use and features extreme durability, reliability and robustness. The user receives optical feedback through LEDs.

CAPTRON can provide individual advice to enable you to choose the perfect product for the required specifications and applications. Contact us: CAPTRON service.

Downloads Two-hand control safeCAP

csm_safeCAP30_einkanalig-DS-V1.0_de_573869ad20
safeCAP30 single channel

+ Download DE
+ Download EN
csm_safeCAP30_zweikanalig-DS-V1.0_de_4269d1f295
safeCAP30 dual channel

+ Download DE
+ Download EN
csm_CAPTRON-thumb-Catalog-safeCAP_92c8eca291
Two-hand control safeCAP product catalog

Two-hand control safeCAP

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-BA-safeCAP-SC30-thumb_9f13772340
safeCAP SC30 Operating Instructions

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-thumb-safeCAP-SC30-EC-Type-Examination-Certificate_9d772b788e
safeCAP SC30 EC-Type Examination Certificate

+ Download DE
+ Download EN
csm_thumb-safeCAP-SC4-Instruction-PNOZ-s6_042f08c83d
Instruction "safeCAP SC4" with pilz PNOZ s6

Zweihandsteuerung

+ Download DE
+ Download EN
+ Download PL

Product Series

csm_CAPTRON-Two-hand-control-safeCAP-SC30-series-teaser_c5b9cfdc53

New: SC30 (according to EN 13851)

  • Ø 50 mm switching surface
  • Single channel and dual channel available
  • Compatibility to safety relais
  • Certified by TÜV SÜD (EN 13851)
csm_CAPTRON-Two-hand-safety-control-safeCAP-SC4_2a45827acb

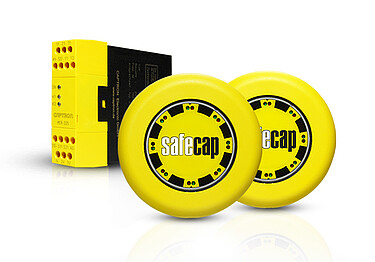

SC4

  • Ø 63 mm switching surface
  • Certified according to PLe (DIN EN ISO 13849-1)
  • Compatible with MCR-225  safety relais
  • Typ III C certified according to DIN EN 13851
csm_CAPTRON-two-hand-safety-control-safeCAP-SC3_a788591e1b

SC3 (Series discontinued)

  • Ø 50 mm switching surface
  • Ø 22,5 mm mounting hole
  • Compatible with Siemens safety relais
  • Certified by TÜV SÜD (EN 574)
