New: SC30 (according to EN 13851)

Description

The new product generation of the safeCAP SC30 buttons replaces the successful product series of the safeCAP SC3.

The new safeCAP SC30 button has PhotoMOS relays NO in the single channel version can be used as a two-hand control in conjunction with the relays 3SK1 Advanced, 3RK3 MSS or Simatic F-CPU. The SC30 dual channel version NO / NC can be used as a with the MCR225 Relais as well as the PILZ PNOZ s6.

The optical feedback occurs during the operating state via a green LED and during switching processes via a yellow LED. The SC30 is suitable for the installation opening of Ø 22.5 mm and has a outer diameter of 54 mm. Their compact design allows a quick and space-saving mounting or the replacement in existing operator controls. Operation with disposable or working gloves is possible and has no restrictions.

Additional safety elements such as the Protector or control desk can be used in modular form depending on the application. These combinations satisfy all the requirements for two-hand safety controls type III C to DIN EN 13851 due to the standard-compliant design. The safety functions comply with Category 4 and Pl e to DIN EN ISO 13849-1.

The SC30 series is used in industries with increased safety requirements and as two-hand controls.

CAPTRON can provide individual advice to enable you to choose the perfect product for the required specifications and applications. Contact us. CAPTRON service.

Downloads

csm_safeCAP30_einkanalig-DS-V1.0_de_573869ad20
safeCAP30 single channel

+ Download DE
+ Download EN
csm_safeCAP30_zweikanalig-DS-V1.0_de_4269d1f295
safeCAP30 dual channel

+ Download DE
+ Download EN
csm_CAPTRON-thumb-Catalog-safeCAP_92c8eca291
Two-hand control safeCAP product catalog

Two-hand control safeCAP

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-BA-safeCAP-SC30-thumb_9f13772340
safeCAP SC30 Operating Instructions

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-thumb-safeCAP-SC30-EC-Type-Examination-Certificate_9d772b788e
safeCAP SC30 EC-Type Examination Certificate

+ Download DE
+ Download EN

Important properties

  • 100% water and oilproof
    Protection class IP69K, fully sealed in casting resin
  • Extremely long service life
    Over 100 million switching cycles
  • Impact-resistant – robust
    Protection rating IK08, cannot be destroyed by lighter flames and blows to the switch surface
  • Certified
    EN 13851, IEC 60947-5-1, EN ISO 13849-1, 2006/42/EC, CAN/CSA-C22.2 No. 61010-2-201, UL 61010-2-201
  • Compatible with Siemens safety relay
    3SK1 Advanced, 3RK3 MSS, Simatic F-CPU 09
  • Touch sensor
    Maximum ease of use, effortless, no strain on wrists

Products

csm_CAPTRON-Two-hand-control-safeCAP-SC30_abe4023c73

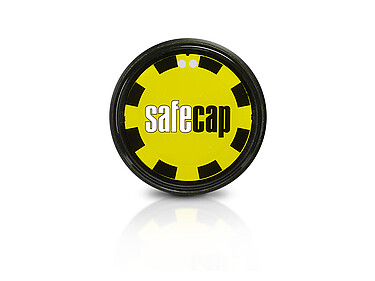

SC30 (Single Channel)

Can be used as two-hand control in conjunction with a safety relais.

  • Ø 50 mm switching surface
  • Ø 22,5 mm mounting hole
  • Compatible with Siemens safety relais
  • Certified by TÜV SÜD (EN 13851)


SAFETY APPLICATION: PUNCHING | PRESSES

csm_CAPTRON-Two-hand-control-safeCAP-SC30_abe4023c73

SC30 (Dual Channel)

Can be used as two-hand control in conjunction with a safety relais.

  • Ø 50 mm switching surface
  • Ø 22,5 mm mounting hole
  • Compatible with safety relais MCR-225 Relais and PILZ PNOZ s6
  • Certified by TÜV SÜD (EN 13851)


SAFETY APPLICATION: PUNCHING | PRESSES
