Two-hand control safeCAP SC3

Description

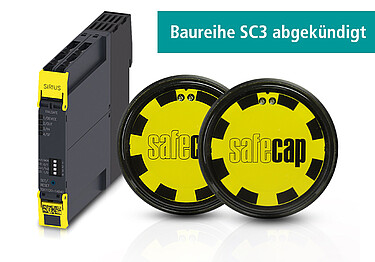

safeCAP3 is a safety system certified by TÜV Süd featuring PhotoMOS NO relays and can be used with as a capacitive two-hand safety control with conventional Siemens safety relays. Two identical compact SC3 buttons with a 50 mm touch area are perfect for the ergonomic, safe control of heavy machinery and systems without pressure. The can also be controlled with disposable or work gloves, however.

Additional safety elements such as the Protector or control desk can be used in modular form depending on the application. These combinations satisfy all the requirements for two-hand safety controls type III C to DIN EN 574 due to the standard-compliant design. The safety functions comply with Category 4 and Pl e to DIN EN ISO 13849-1.

The feedback in operating mode is given by one green LED for the switching cycle and one yellow LED. The SC3 is suitable for an installation opening measuring 22.5 mm in diameter and has a reduced external diameter of 54 mm. This compact design means that the buttons can be installed quickly without taking up too much space.

CAPTRON can provide individual advice to enable you to choose the perfect product for the required specifications and applications. Contact us. CAPTRON service.

Downloads

csm_CAPTRON-Thumb-safeCAP-SC3-Instruction_d0020e25cb
Instruction manual Two-hand control "safeCAP SC3"

Zweihandsteuerung

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Two-hand-control-safeCAP_8410a2d1bc
Catalog "Two-hand control safeCAP"

Two-hand control safeCAP

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-Industrial-Automation-Brochure_341a5a63b4
Brochure "Industrial Automation"

+ Download DE
+ Download EN
+ Download CN
Any questions?

We will be pleased to help you.

Product Certificates

Certificates, flyers and data sheets

Important properties

  • 100% water and oilproof
    Protection class IP69K, fully sealed in casting resin
  • Extremely long service life
    Over 100 million switching cycles
  • Impact-resistant – robust
    Protection rating IK08, cannot be destroyed by lighter flames and blows to the switch surface
  • Certified by
    Underwriter Laboratories
  • Certified by TÜV Süd
    EN 574:1996+A1, IEC 60947-5-1, EN ISO 13849-1, 2006/42/EC
  • Compatible with Siemens safety relay
    3SK1 Advanced, 3RK3 MSS, Simatic F-CPU 09
  • Touch sensor
    Maximum ease of use, effortless, no strain on wrists

Products

csm_CAPTRON-two-hand-safety-control-safeCAP-SC3_28a7abaefa

SC3 (safeCAP SC3)

safeCAP-switch for 22,5 mm mounting

  • Ø 50 mm switch surface
  • Ø 22,5 mm mounting hole
  • Compatible with Siemens safety relais
  • Certified by TÜV SÜD (EN 574)

APPLICATION: PUNCHING | PRESSES

csm_CAPTRON-two-hand-safety-control-safeCAP-SC3-3SK1_c509fb6521

Safety relais 3SK1 (Advanced)

For safety applications in conjunction with SC3

  • SIRIUS safety switching devices 3SK1
  • For safety applications in conjunction with SC3
  • Highest requirements according to IEC 61508/ IEC 62061 (SIL 3) as well as EN ISO 13849-1 (PL e)

APPLICATION: PUNCHING | PRESSES
